FAQ 000269 ZH

显示设置 RF-CONCRETE RFEM

I want to adjust the results and the color scale to the reinforcement surfaces of mesh reinforcement.

How can I do this?

回答

To adjust the color scale and the value region, proceed as follows.

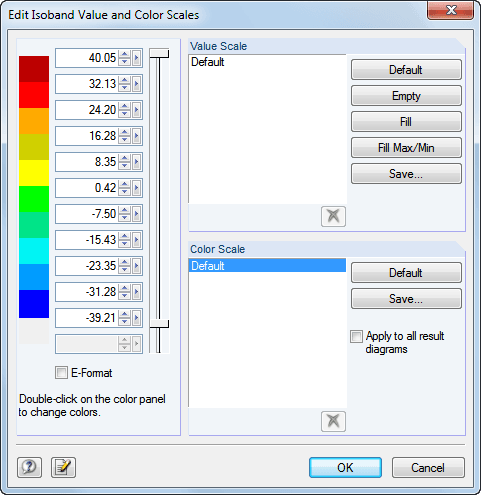

First, display the results whose scale you want to adjust. In the control panel appearing on the right, double-click the colors of the color scale. The "Edit Isoband Value and Color Scales."

Here, you can use the slider right next to the values to adjust the value regions.

You can change the values by reentering or changing them in the corresponding text boxes.

Pay attention, however, to keep to the sequence. To change the color, double-click it.

Now, you can select a predefined color or set a user-define one for the corresponding value region. You can save the color scale and the value scale to reuse the user-defined scale also for other models.
