FAQ 000342 ZH

Modeling | Structure RF-KAPPA

Is there any possibility to import automatically the effective lengths of members calculated in RSBUCK to KAPPA?


Yes, an import of the calculated buckling lengths from RSBUCK to KAPPA is possible.

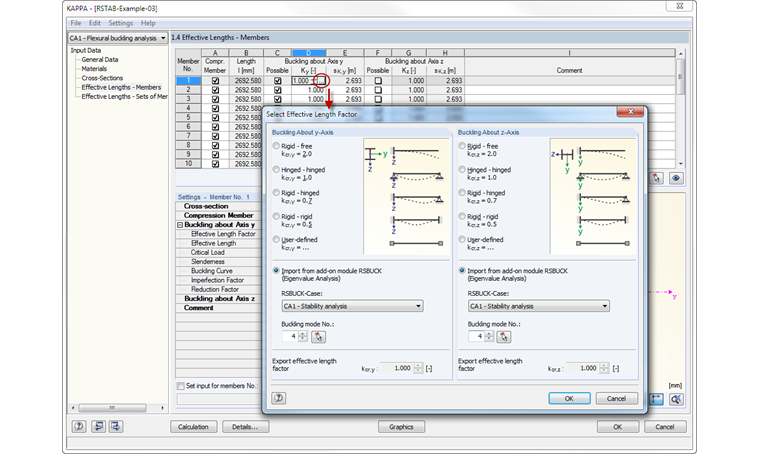

Go to module window 1.4 Effective Lengths - Members or 1.5 Effective Lengths - Sets of Members and click into the cell of the effective length factor K. Then, some buttons become accessible. You click the last button [...].

A dialog box opens where you can import for each K-value the effective length factors from the add-on module RSBUCK.
