The plastic stresses are not shown in DUENQ. What is the reason?

回答

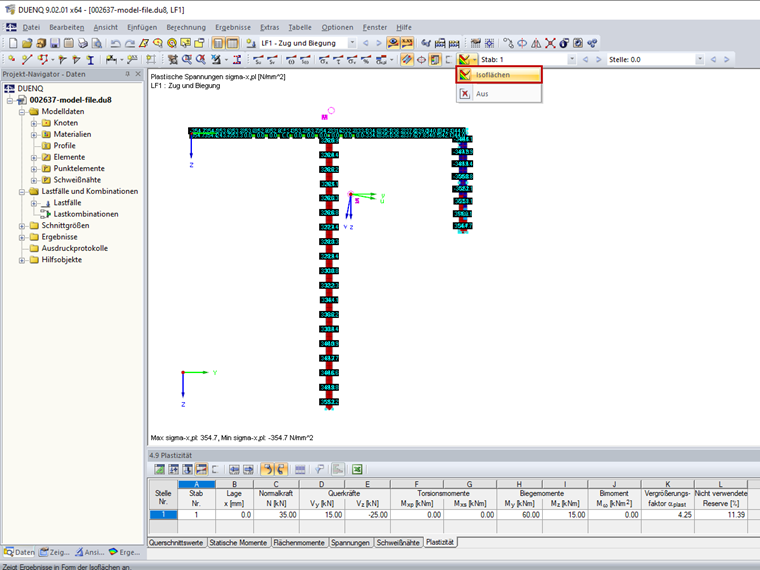

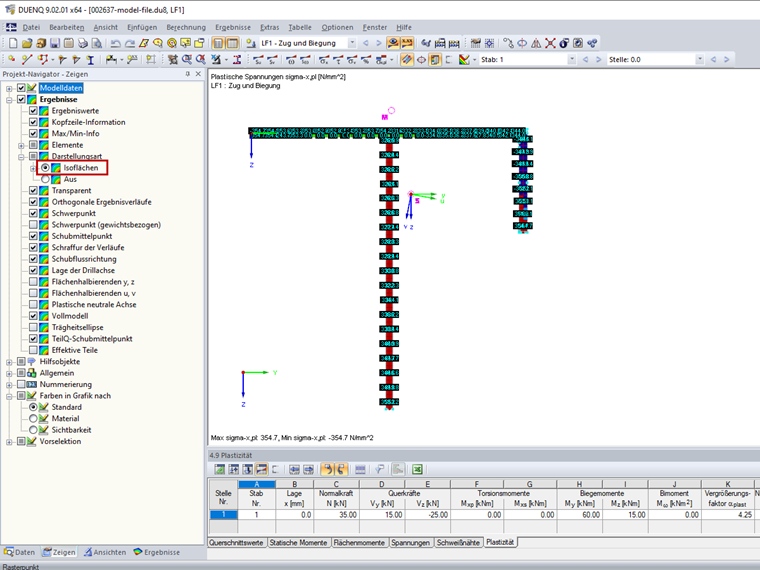

The plastic stresses are output exclusively in the representation type isosurfaces . The display type can be selected via the icon in the toolbar (see Figure 1) or in the Project Navigator - Show under Results -> Display type can be set.

关键词

塑性张力,表示方法,等值面
