面释放分离重叠面

是否可以使用面释放来分离两个重叠的面?


回复:

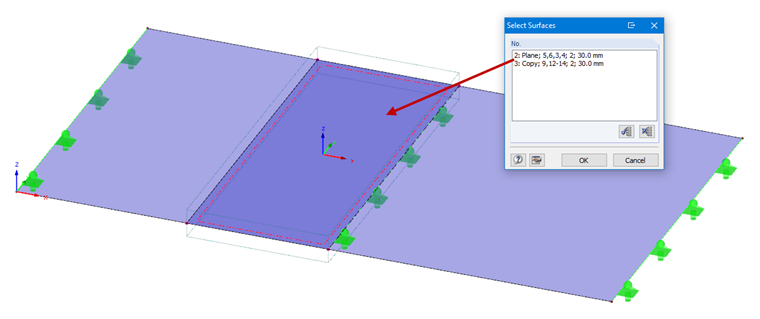

您可以使用面释放,但需要用自己的面分隔重叠部分。 Overlapping surfaces should be avoided in general and can be checked by the "Model Check" (Tools → Model Check → Overlapping Surfaces). Please watch the video file (see the link below) to see the approach. As an alternative, you can add a "Contact Solid" between two surfaces.


作者

Gerhard 在产品工程部从事木结构领域工作,并同时支持客户支持工作。他利用自己的开发经验提供贴近实践且可实施的解决方案。
