杆件荷载和支座太大

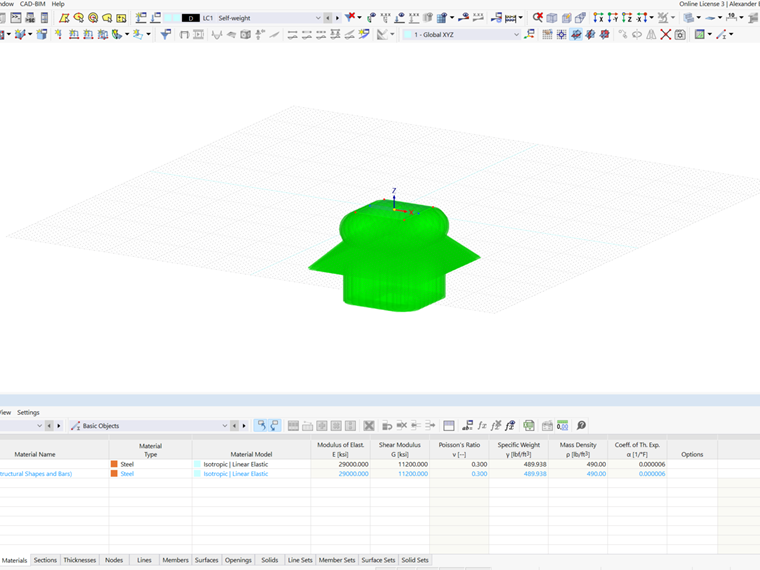

即使我将比例设置为最小,模型荷载、支座等的比例也会非常大。 如何减小尺寸?


回复:

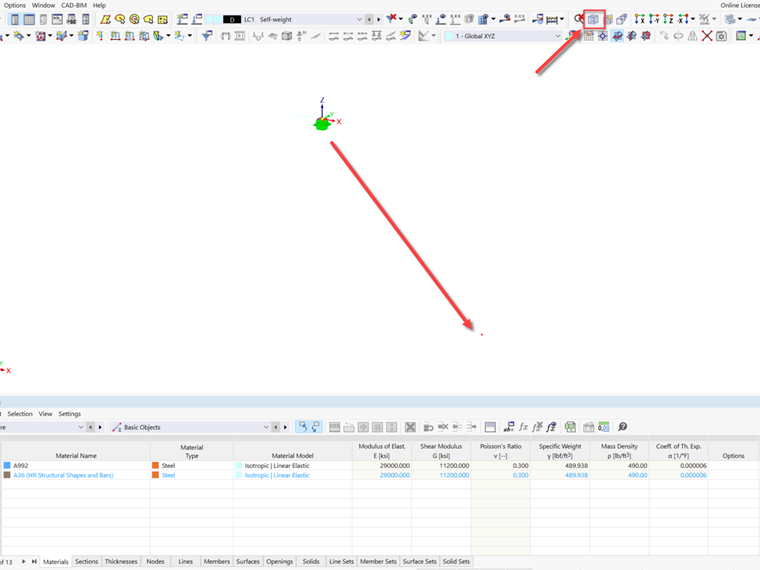

如果节点距离主体结构非常远,则会发生这种情况。 It is recommended that you set the view to "Isometric" and then this will zoom out on your model and give you an idea of where these stray elements are located.


You will need to delete these elements that are not attached to the structure or move them closer.

请注意: Enlarged graphical issues can happen when importing a model from another format and the structure is extremely far away from the origin. The solution to this is to move the model as close as possible to the origin.
