The designed lift table can be moved vertically and is balanced by a counterweight. Due to the parallelogram the table keeps its horizontal position even if the position is changed. The structure has a length of approx. 18.6 m, a width of 11.4 m and a height of 21.9 m.

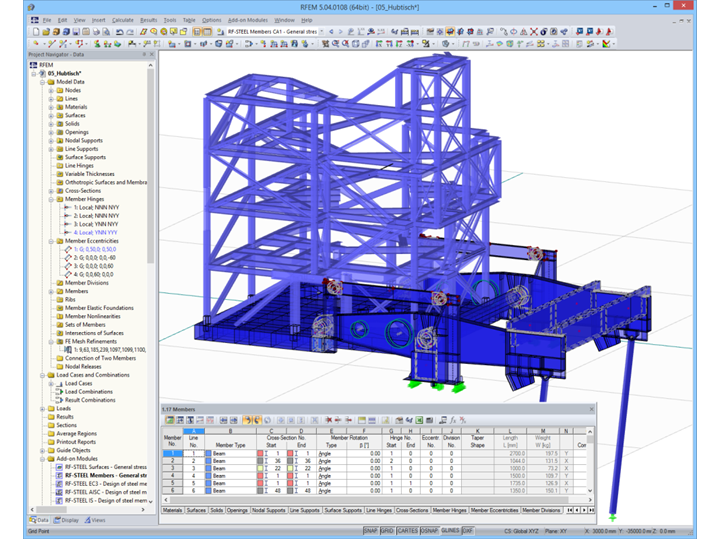

The steel construction applied to the table includes the installation of different types of equipment. For most of the structure, Russian cross-sections in accordance with the GOST standard were used and selected from the RFEM cross-section library. For the design, the RF-STEEL add-on module was used. The total weight of the construction including counter-weight is approx. 1,000 tons.
