The isoband display for internal forces does not correspond to the color scale in the control panel. This occurs only for result combinations. What is the explanation for this?

回答

In the display of the RC results, the max and min surface results are both shown at the same time by default.

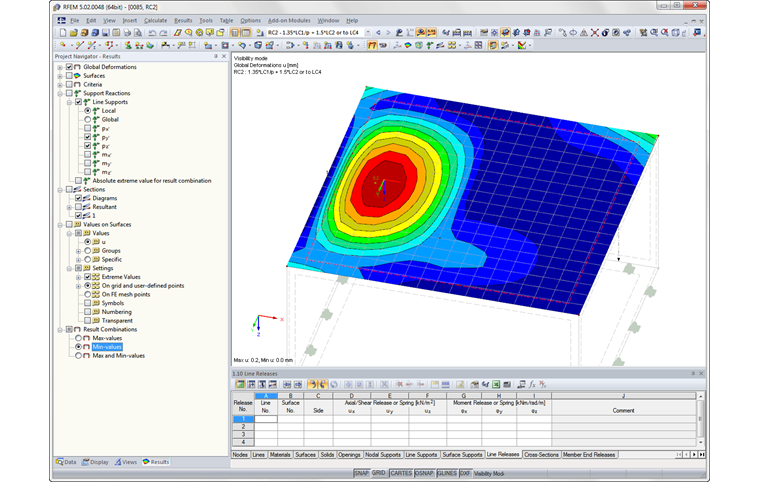

In the given model, the min results are shown for the view in the Z-direction (plan view). If you rotate the model a little, you see the max results on the bottom side.

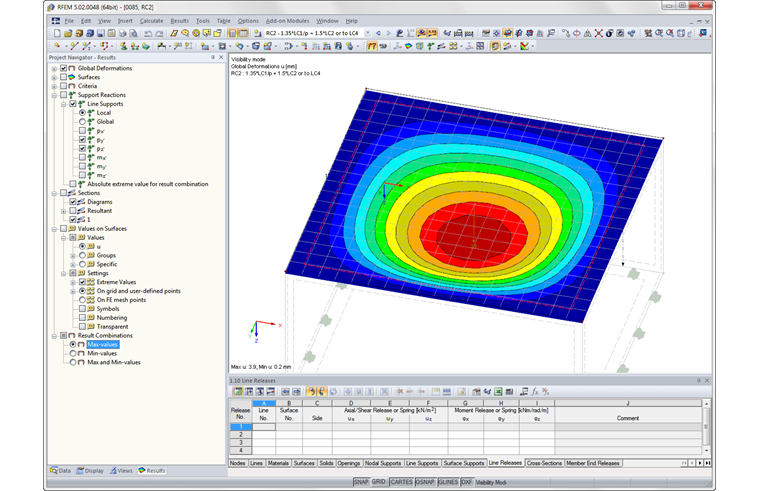

It is also possible to deactivate the simultaneous display and show only the max or only the min value. To do this, use the options in the lower part of the "Results" navigator (see figures).
