FAQ 002001 ZH

结果 RFEM 5.xx

A ceiling slab is to be calculated in RFEM and I would like to display results of support forces on a single line support in a concentrated load case.

It is possible to display the overall results of all support forces in a loac case.

How can I display the result of one selected line support?

回答

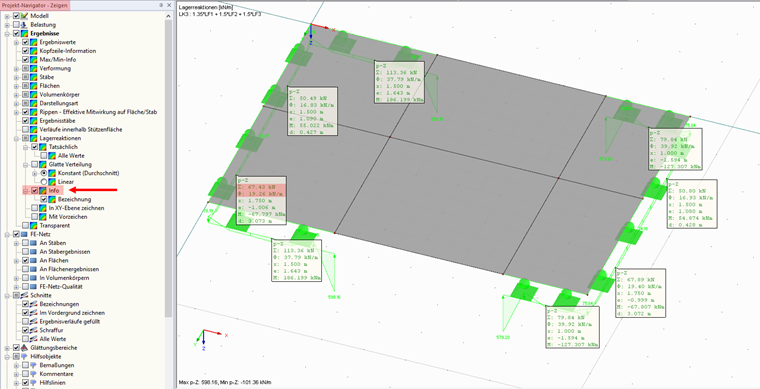

Select the "Info" option in the Project Navigator - Display under Results -> Support reactions to display advanced view of each line support. Among others, you can display the sum of resulting forces as well as their eccentricity.
