Importar sección de RSECTION

A partir de la versión RFEM 6.02.0071, la sección de RSECTION se importa en RFEM a través del Centro de Dlubal (figura 01).

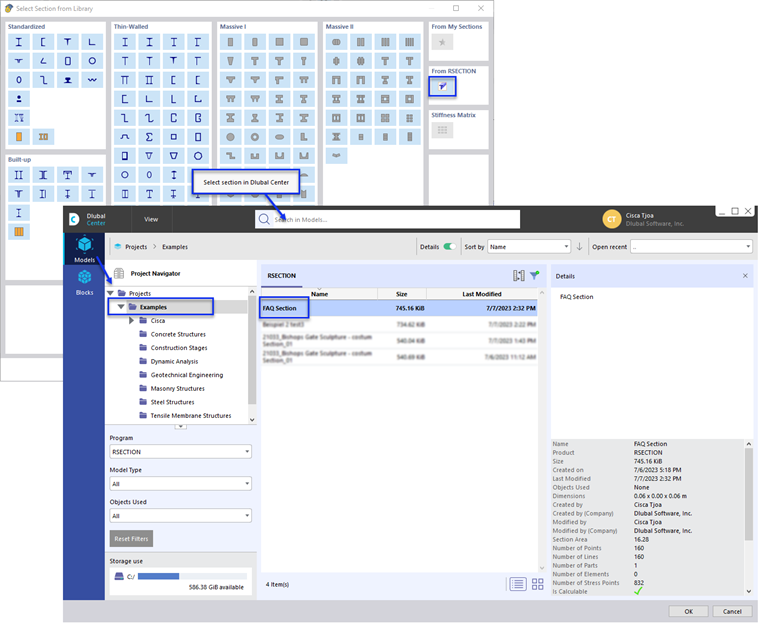

1 Centro de Dlubal

In order to access the file in the Dlubal Center, the RSECTION file can be saved in the Dlubal folder (Image 02). Make sure the file is saved inside the “examples” folder.

2 Ubicación de la carpeta Dlubal

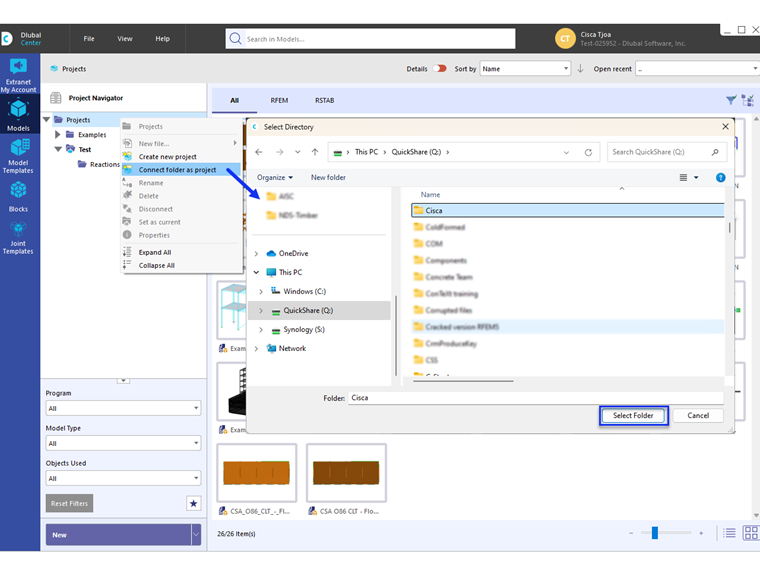

The file can also be saved in a different location by choosing the option to Add existing project and selecting the relevant folder (Image 03). Do not use the Create new project option.

3 Agregar proyecto existente

The RSECTION file can then be found under Models in the "Projects" folder (Image 01).
