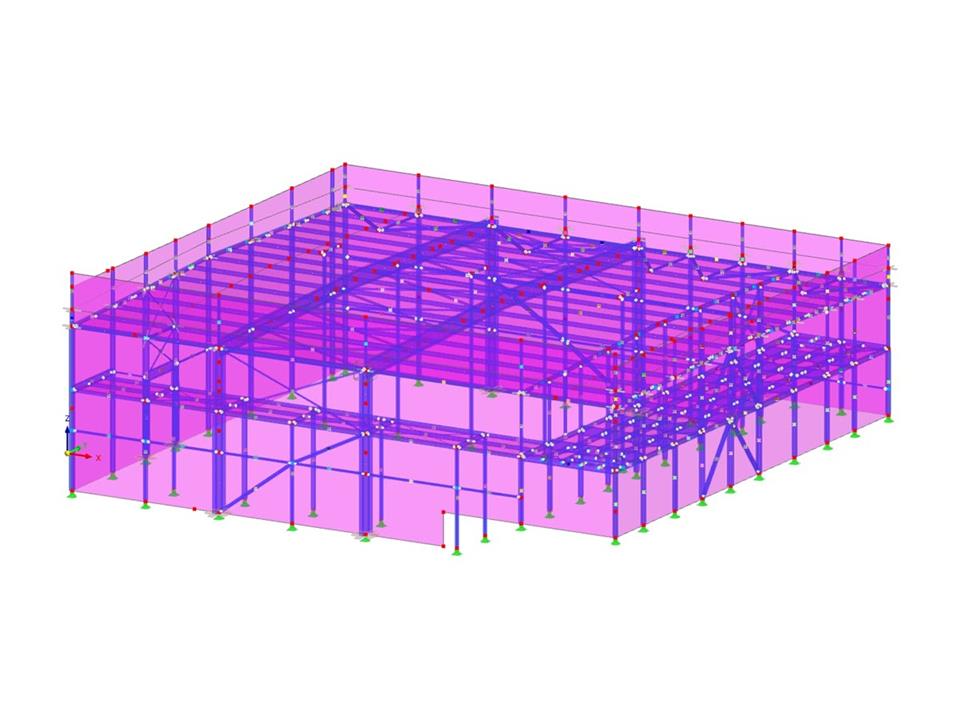

工业厂房扩建模型
无法下载
客户项目/只视图
节点数目: | 458 |
线的数目 | 651 |
杆件数目: | 527 |
面的数目: | 22 |
实体数目 | 0 |
荷载工况数目 | 13 |
荷载组合数目 | 179 |
结果组合数目 | 1 |
总重量 | 132,907 t |
翘曲区域尺寸 | 44.410 x 15.960 x 38.660 m |
![知识库 001840 | 在 RFEM 6/RSTAB 9 中对热镀锌钢构件进行抗火设计](/zh/webimage/040242/3508895/fire_resistance_configuration_galvanized_surface.png?mw=512&hash=890480b0d5bbf5138ef4732c471fd06ffce4f034)
使用“钢结构设计”模块,您可以使用欧洲规范 3 中的简单设计方法来设计发生火灾时的钢结构构件。 检测时的组件温度可以根据标准中规定的温度-时间曲线自动确定。 除了考虑防火覆层外,您还可以考虑热镀锌的优点。
![Querschnittsklassen](/zh/webimage/009823/467872/01-de-png.png?mw=512&hash=2551750327252c0e49d549ec0d9fb2579bfaa885)
按照欧洲规范 3 进行截面设计,是根据规范规定的截面等级进行设计。 截面的分类非常重要,因为它决定了由截面局部屈曲产生的承载力和抗扭承载力。
![抗火承载力配置](/zh/webimage/027419/3210850/1_en.png?mw=512&hash=fd421b3f2c85d04e163841c3e5995f948391dd20)
钢材的防火性能较差。 The thermal expansion for increasing temperature is very high compared to that of other building materials, and might result in effects that were not present in the design at normal temperature due to restraint in the component. As temperature increases, steel ductility increases, whereas its strength decreases. Since steel loses 50% of its strength at temperature of 600 °C, it is important to protect components against fire effects. In the case of protected steel components, the fire resistance duration can be increased due to the improved heating behavior.
![通过导航器的数据选项卡新建有效长度](/zh/webimage/026994/3204428/iMAGE_1.png?mw=512&hash=733a523c0e8f7011541a47999be0481d48d5a5a3)
按照 EN 1993-1-1、AISC 360、CSA S16 等国际规范进行等效杆件验算时,都需要考虑杆件的设计长度(即杆件的有效长度)。 在 RFEM 6 中可以手动确定有效长度,方法是指定节点支座和有效长度系数,或者从稳定性分析中导入。 本文将通过确定图 1 中框架柱的有效长度来演示这两种方案。
![功能 002820 | 焊缝塑性应变极限值](/zh/webimage/050344/3881226/1.png?mw=512&hash=9d7f6c198b6d4ae6ee8f2fa8bca75f85579e14c9)
在钢结构节点设计的承载能力极限状态中,您可以更改焊缝的极限塑性应变。
!["底板"组件](/zh/webimage/050345/3881657/1.png?mw=512&hash=9d7f6c198b6d4ae6ee8f2fa8bca75f85579e14c9)
用户可以使用“底板”组件设计以及锚固锚固后的锚固节点。 Dabei werden Platten, Schweißnähte, Verankerung und Stahl-Beton-Interaktion analysiert.
![功能 002807 | 有限元分析结果的 3D 视图](/zh/webimage/049281/3861162/2024-05-01_10-32-55.png?mw=512&hash=2377d291bc20ac3d78d617b50c131614e99ac6f7)
导入对话框"考虑受力分析"显示的有限元应力分析法 (FSM) als 3D-Grafiken lassen的考虑。
![钢结构设计 | 抗震体系设计概述](/zh/webimage/048507/3803346/seismic_steel.png?mw=512&hash=1c18a83f050e74601a7300444a0d77a0246a0e02)
- 可以设计五种抗震结构体系 (SFRS),即特殊弯矩坐标系(SMF)、中间弯矩坐标系(IMF)、普通弯矩坐标系(OMF)、普通弯矩坐标系(OCBF)和特殊弯矩坐标系(SCBF) )
- 腹板和翼缘宽厚比的延性验算
- 计算梁的稳定性支撑所需的强度和刚度
- 计算梁的稳定性支撑的最大间距
- 计算梁在铰处所需的支撑强度
- 计算柱子所需强度,可以选择忽略所有弯矩、剪力和扭矩以达到超强极限状态
- 计算柱和支撑的长细比
