Add-on modules FOUNDATION Pro RF-FOUNDATION Pro 8.xx 5.xx

Where can I specify in RF-/FOUNDATION Pro whether the loading for design of foundation rotation according to DIN EN 1997-1 results from a permanent action or from a combination of permanent and variable actions?

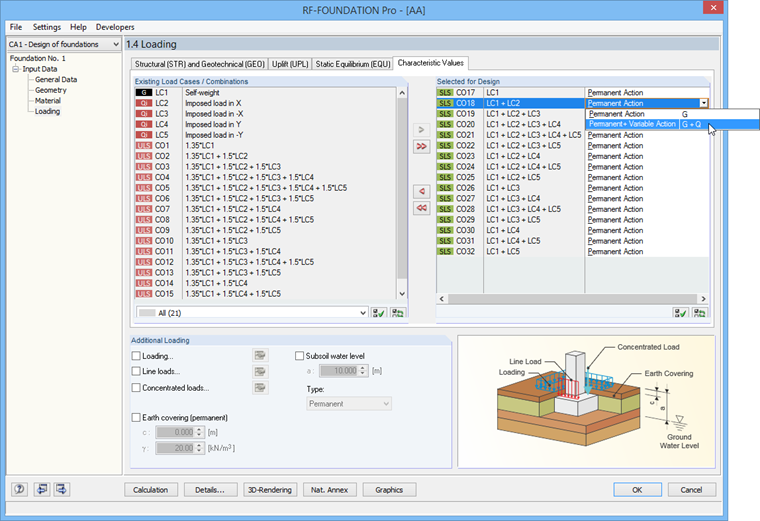

For this, open the "1.4 Loading" window in the add-on module abnd select the "Characteristic Values" tab. If you have selected the design according to EN EN 1997-1 in the "1.1 General Data" window, you can set for each load case or load combination selected for design whether a "permanent action" or a "permanent + variable action" is concerned. You can assign the actions by moving the corresponding entry in the "Selected for Design" list.


characteristic values, foundation rotation
