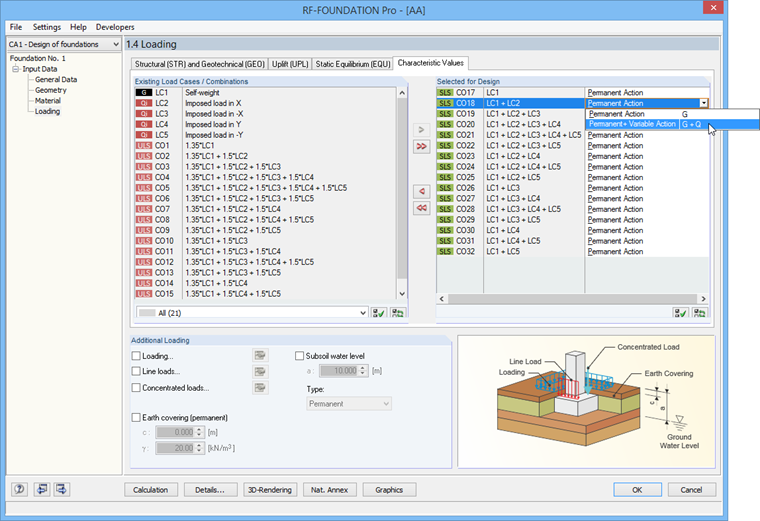

Open Window 1.4 Loading in the add‑on module and select the Characteristic Values tab.
If the design according to DIN EN 1997‑1 should be performed, you can specify for each load case or load combination selected for the design whether a Permanent Action or a Permanent + Variable Action is concerned. Select the corresponding entry in the Selected for Design list.
