RFEM 5 中带位置有限元区域的输出

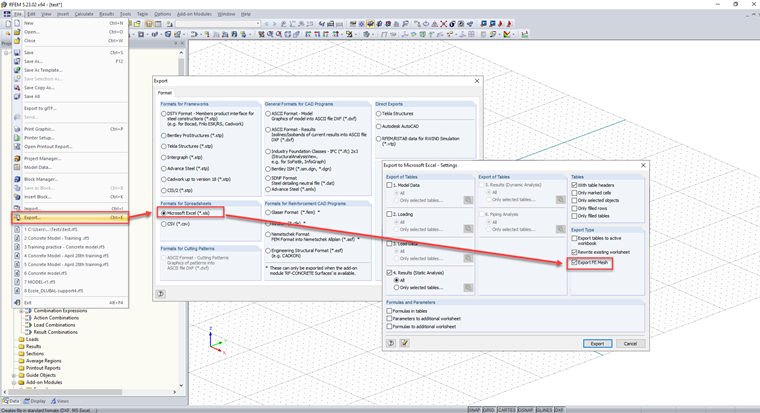

在 RFEM 中不能将有限元网格节点与那些区域一起查看，但是可以将它们导出到 Excel 表格中。 You can do this by following the steps in Image 01.

1 将有限元网格导出到 Excel

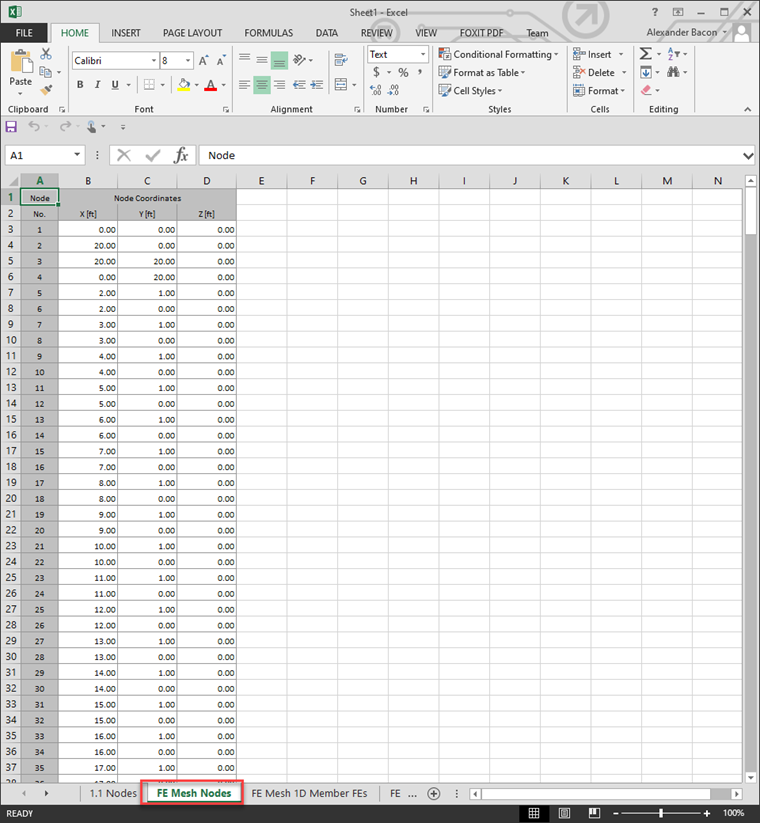

In Image 02, the coordinates of the FE mesh nodes are exported to Excel.

2 在 Excel 中导出有限元网格坐标

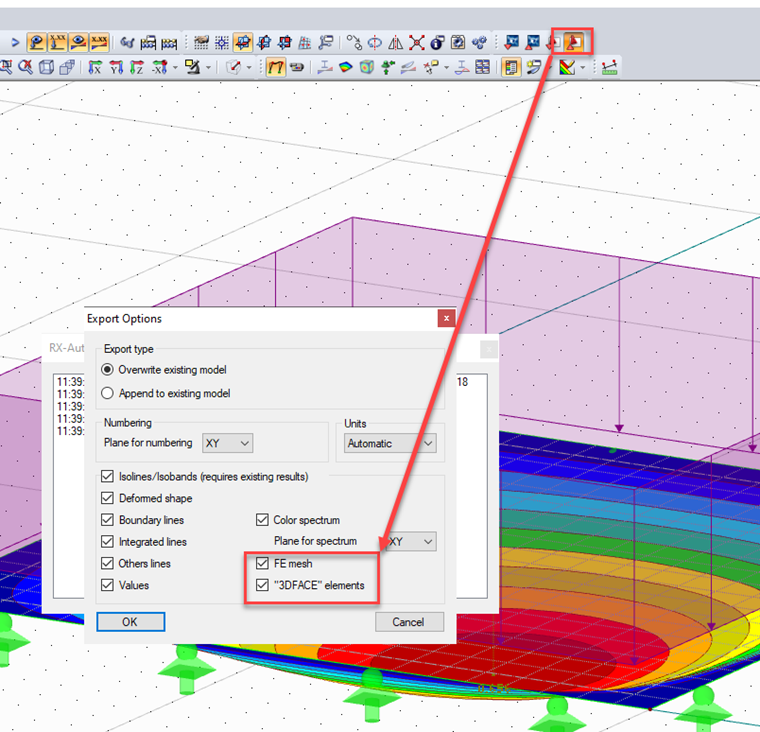

It is also possible to export the FE mesh as a .dxf file into AutoCAD. To do so, use the direct export option in RFEM and select the FE Mesh option. See this in Image 03.

• 3D Viewer | Google
• 3D Viewer | Babylon
• 虚拟现实

3 直接导出选项

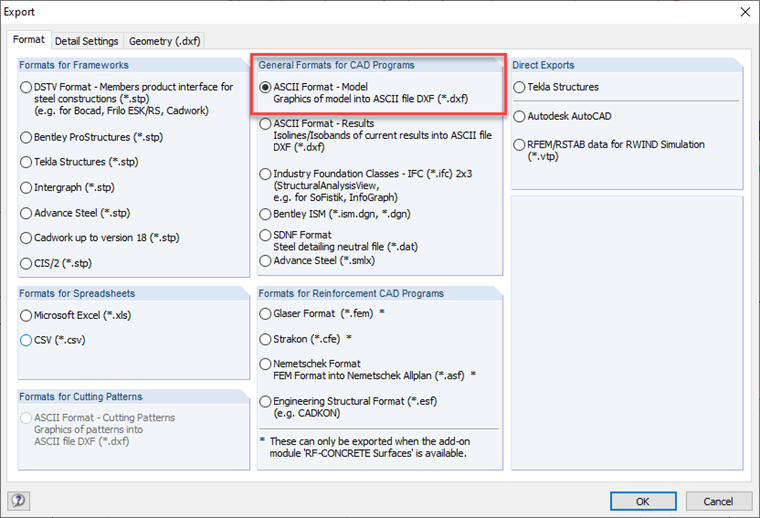

Another option is to go to File - Export and then select the following format.

4 导出文件类型

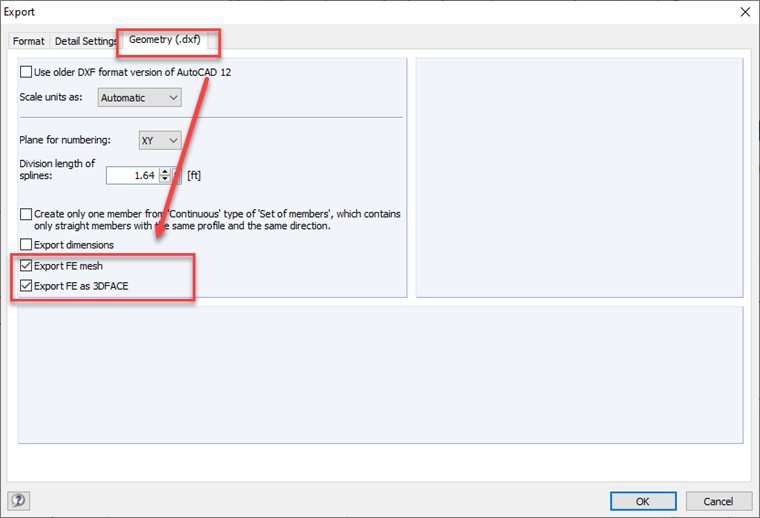

Then, in the Geometry tab, select the check boxes shown below.

5 导出选项
