FAQ 000103 ES

Modeling | Structure RSTAB

When copying a structural model, is it possible to transfer also the loading of the original model to the new one?

Respuesta

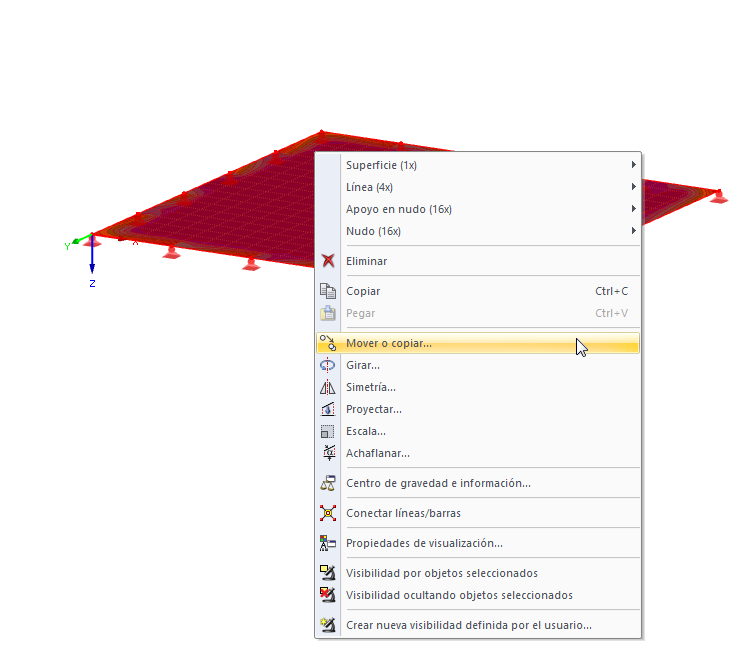

Yes, it is possible to copy models including existing loads in RSTAB. First, select the model you want to copy and click "Move/Copy" in the "Edit" toolbar menu. Alternatively, you can right-click the selected model to open the shortcut menu where you can access the "Move/Copy" command.

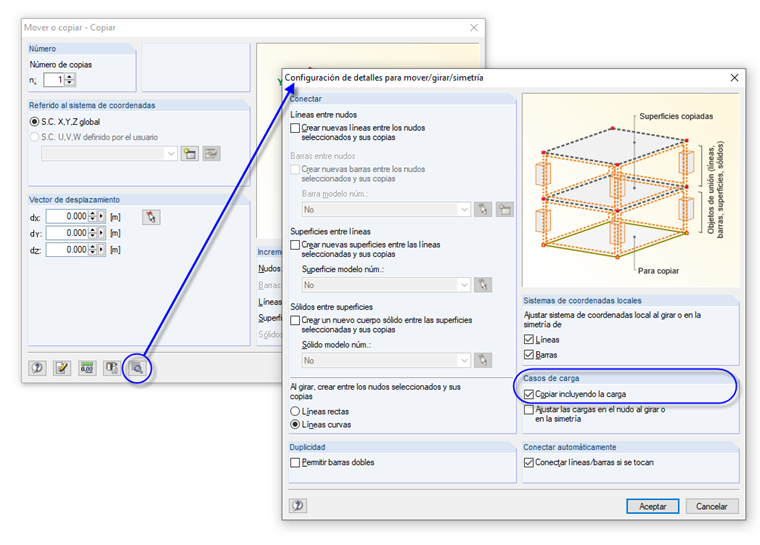

In the "Detail Settings" dialog box, you can decide if you want to copy the structure including loads.

In this way, it is possible to copy all loading of the individual load cases.
