Incrementos de carga y materiales no lineales

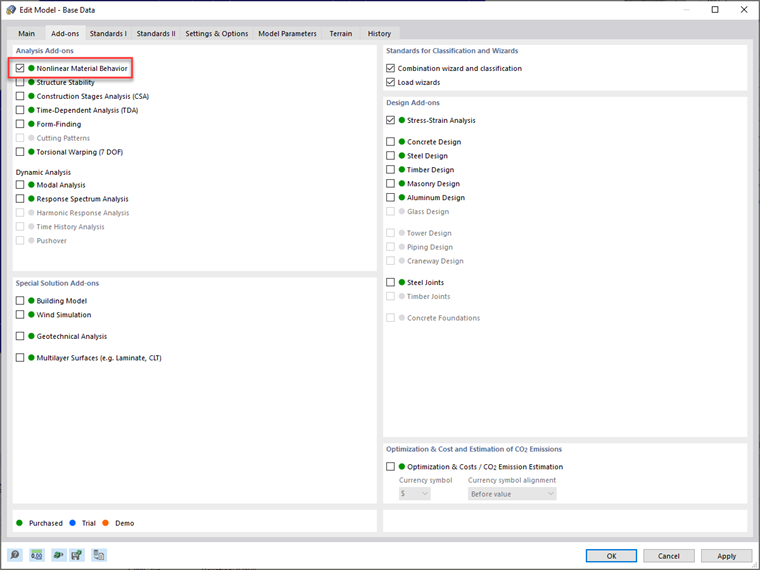

Para activar el comportamiento no lineal del material en RFEM 6 o RSTAB 9, se debe activar el complemento Comportamiento no lineal del material.

FAQ

Preguntas frecuentes 005310 | ¿Es posible establecer incrementos de carga, guardar los resultados de cada paso y ver en qué carga ...

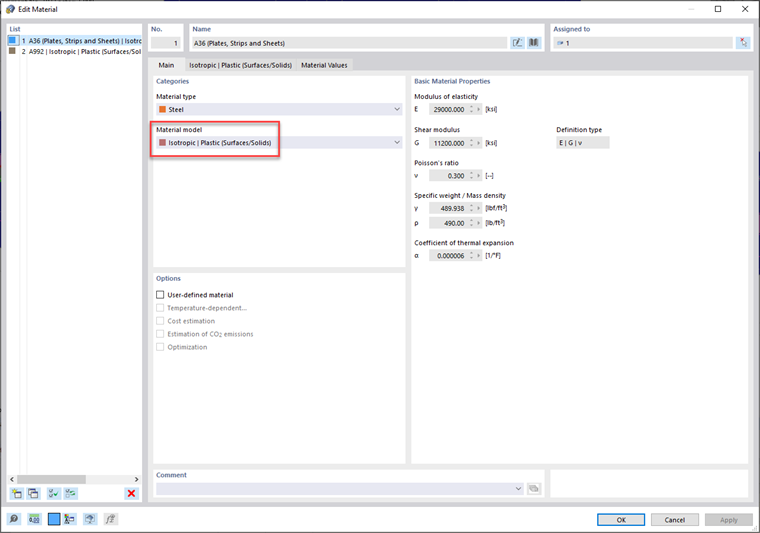

The material model should then be modified from the default setting "Linear Elastic" to the relevant "Plastic" setting in the Material dialog box, depending on whether the element is a 1D member, 2D surface, or 3D solid.

Lastly, the Static Analysis Settings should further be modified to set the number of load increments and to activate the "Save results of all load increments" checkbox.

After the calculation, all results can be viewed in the Navigator – Results panel according to the selected load increment.
