Structural Analysis and Design
WTM Engineers GmbH
Suisseplan AG, Zurich, Switzerland
GAC German Airport Consulting GmbH, Hamburg, Germany
LSB Gesellschaft für Lärmschutz mbH, Hamburg, Germany
|投资商||Zurich Airport AG, Switzerland|
Dlubal 公司客户 WTM Engineers 和苏黎世 Suisseplan、德国 GAC German Airport Consulting、德国 LSB Gesellschaft für Lärmschutz 一起负责该项目，并在 2014 年 6 月圆满结束。

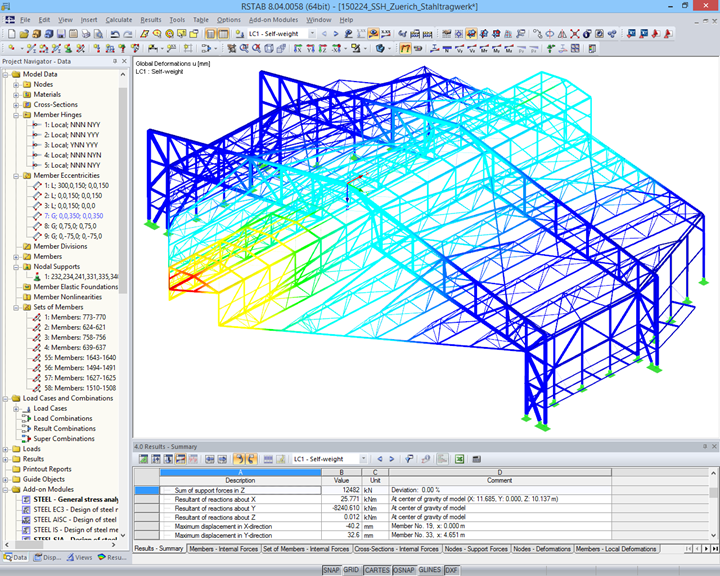

WTM Engineers 使用软件 RSTAB 计算分析该机库的空间支撑结构，并使用 STEEL SIA 按照瑞士钢结构标准 SIA 263 进行设计。
The roof structure with an area of 5,200 m2 is supported by an external steel structure consisting of both spatial and flat trusses as well as support elements across the maximum span of 78.5 m. The hangar can accommodate aircraft up to the size of Boeing 747‑8 with a wing span of 68.5 m.
The main supporting elements are two truss frames with ridge releases which span the whole hangar and support it in the transverse direction. The frames are restrained to foundation blocks on the support nodes.
A truss girder spans the rear opening which is integrated into the gable wall.
In the longitudinal direction, trusses are placed in the apex zone at the side walls of the enclosure which are attached to the main truss frames. They cantilever about 34 m to the top of the hangar.
External spatial three-chord truss girders are linked to the main supporting structure to hold the trapezoidal cross‑sections of the roof.

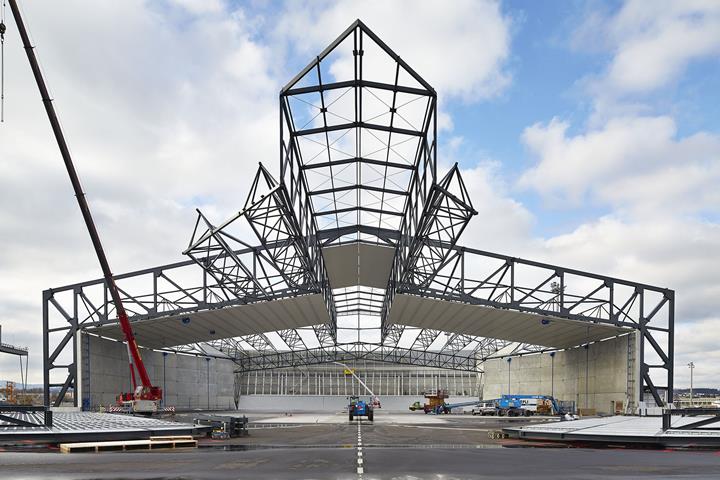

With the noise protection hangar at the Zurich Airport, a building with appealing architecture has been created.
