FAQ 001454 ES

Resultados RFEM

What can I do with a result beam?

Respuesta

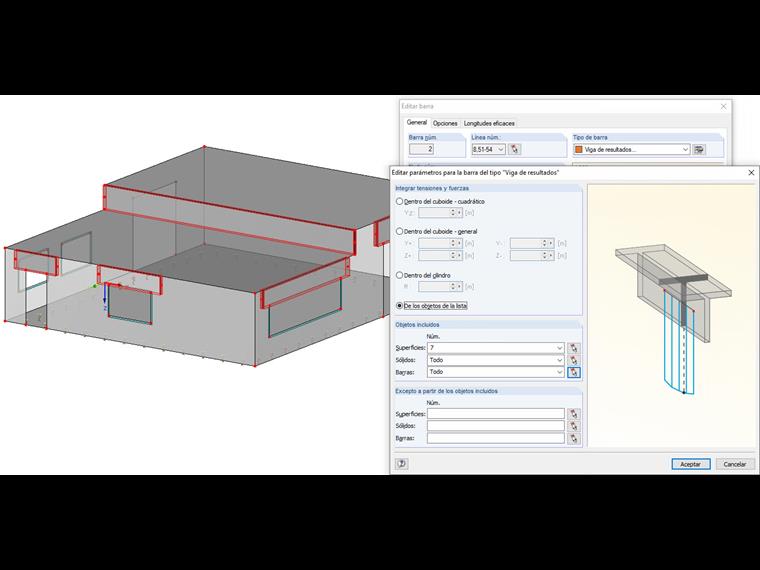

With the new member type "Result Beam" it is possible to greatly simplify the results evaluation of deep beams. This virtual member has no stiffness and is used to integrate the internal forces of members, surfaces and solids in order to show them as member internal forces.

By defining a cross-section you can use the result beam also for a design in add-on modules like RF-STEEL EC3 or RF-CONCRETE Members.

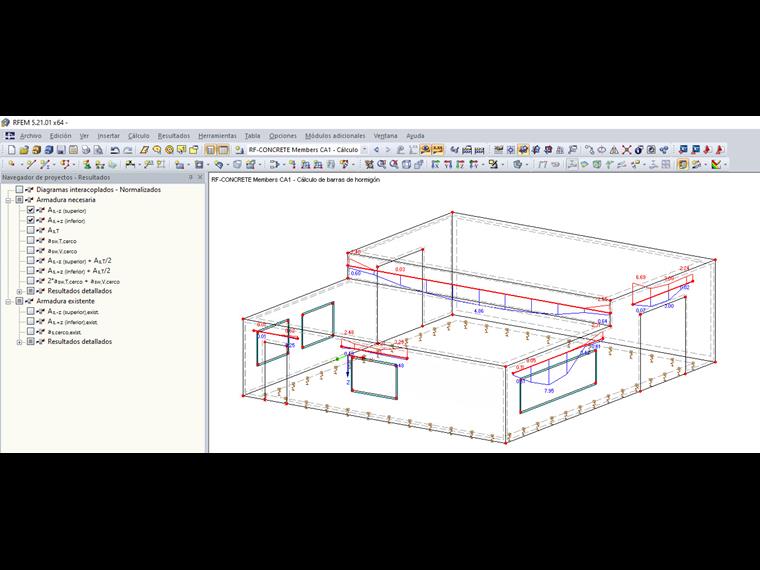

As an example, the graphic shows the determined reinforcement of window and door lintels and a split-level ceiling.
