FAQ 001450 ES

Modeling | Structure RFEM RSTAB

How can I simplify the modeling process?

Respuesta

RSTAB 8 and RFEM 5 offer you the possibility to create line grids. You can create Cartesian, oblique, spherical, or cylindrical grids. Of course, you can also dimension and label them. User-defined line grids help you model structures consisting of surfaces, girder grillages, or grids.

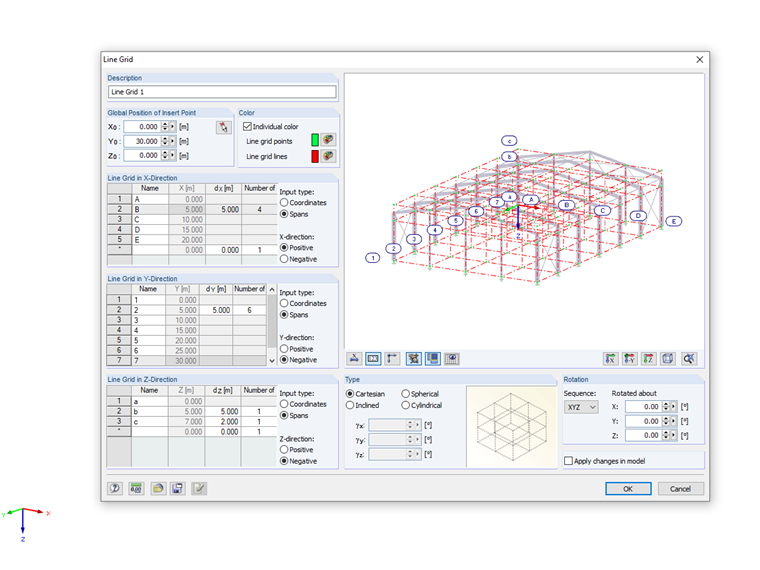

To open the dialog for creating a new line grid, select "Line Grid" on the "Insert" menu. The "Line Grid" dialog box appears, where you can define the new grid.

The settings for the line grid can be saved as templates and reused later.
