FAQ 000129 ES

Modeling | Structure RFEM RSTAB

How can I change the model name or the model description subsequently for an already existing structure?

I mean: How can I access the corresponding dialog box afterwards?

Respuesta

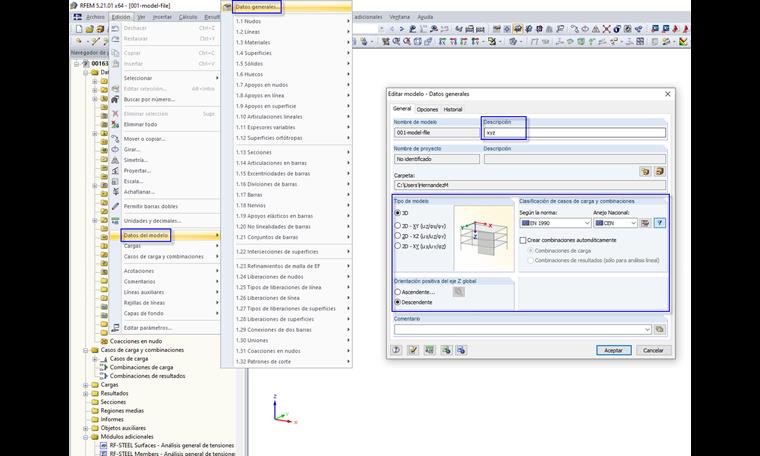

You can find the "General Data" dialog box in the menu: "Edit" -> "Model Data" -> "General Data".

In this dialog box, you can subsequently change the description or the model type - plane (2D) or spatial (3D).

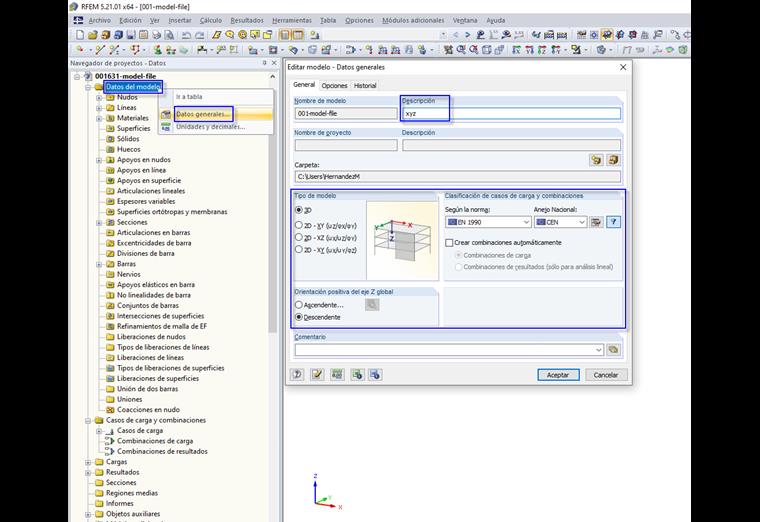

Another way to access the general data of your structure is to right-click the "Model Data" item in the Data Navigator and select "General Data" in the shortcut menu.

In order to change the model name, use the Project Manager and click "File" -> "Project Manager" or use the corresponding toolbar button (between the buttons "Open Model" and "Save Model").

Then, mark the relevant structure and select "Model" -> "Properties".
