Réponse:

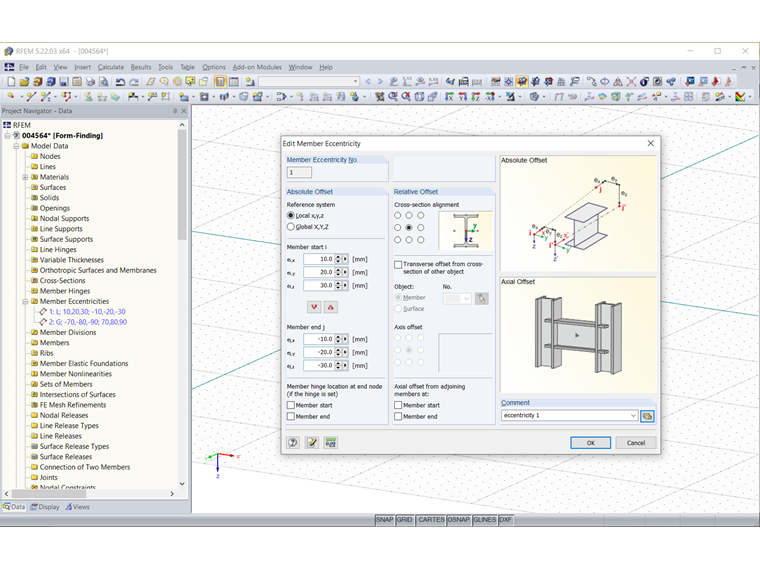

La macro VBA suivante montre la création de deux excentrements de barre. Le code source est disponible au bas de cet article dans les Téléchargements.'--------------------------------------------------------------------------------------------------
Sub SetEccs()
'--------------------------------------------------------------------------------------------------
Dim model As RFEM5.model
Dim data As IModelData
Dim ecc(1) As RFEM5.MemberEccentricity
'Get interface for model
Set model = GetObject(, "RFEM5.Model")
' Block COM licence and program access
model.GetApplication.LockLicense
On Error GoTo e
' Get interface for model data
Set data = model.GetModelData
'Define eccentricity 1
ecc(0).No = 1
ecc(0).ReferenceSystem = LocalSystemType
ecc(0).Start.X = 0.01
ecc(0).Start.Y = 0.02
ecc(0).Start.Z = 0.03
ecc(0).End.X = -0.01
ecc(0).End.Y = -0.02
ecc(0).End.Z = -0.03
ecc(0).Comment = "eccentricity 1"
'Define eccentricity 2
ecc(1).No = 2
ecc(1).ReferenceSystem = GlobalSystemType
ecc(1).Start.X = -0.07
ecc(1).Start.Y = -0.08
ecc(1).Start.Z = -0.09
ecc(1).End.X = 0.07
ecc(1).End.Y = 0.08
ecc(1).End.Z = 0.09
ecc(1).Comment = "eccentricity 2"
'Transfer member eccentricities
data.PrepareModification
data.SetMemberEccentricities ecc
e: data.FinishModification
If Err.Number <> 0 Then MsgBox Err.Description, , Err.Source
Set data = Nothing
' COM licence is unlocked, program access possible again
model.GetApplication.UnlockLicense
Set model = Nothing
End Sub
