FAQ 000345 FR

Display settings RFEM RSTAB

Is it possible to save the modified settings for the display properties (for example line thickness, line color) in a file?


If you have changed several default settings and want to transfer them, for example to another computer, or reimport them after a new installation, you can save your configuration file that you can reimport, as needed.

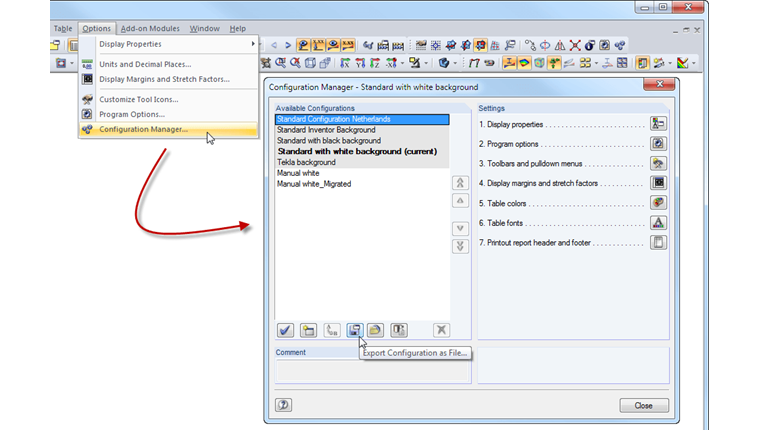

Select "Configuration Manager" on the "Options" menu, and then click the button "Export Configuration as File" to open the "Save As" dialog box where you can enter the name of the configuration file.

To reimport the saved file, use the same dialog box. But this time use the button "Import Configuration from File".
