Graphical Display of Nodal Displacements

How do I display nodal displacements graphically?


Réponse:

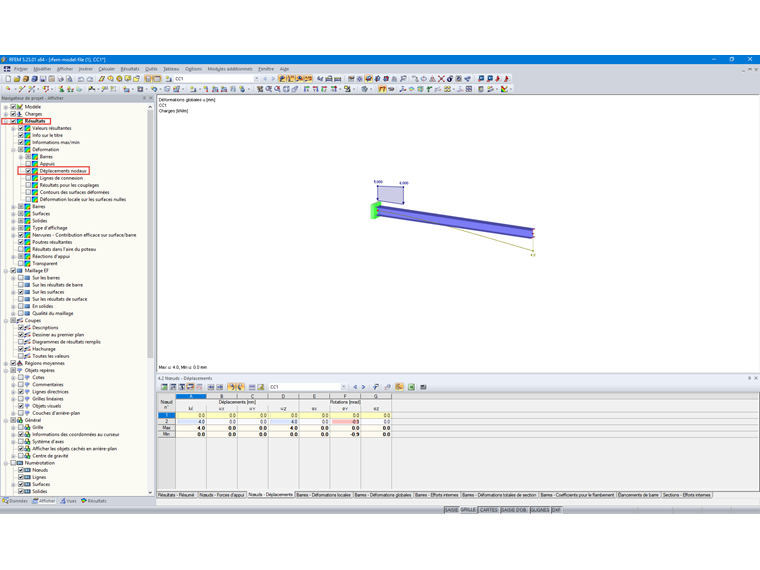

To display nodal displacements graphically, activate the "Nodal Displacements" setting in the Display Navigator under Results – Deformation.

In the Results Navigator, turn on Global Deformations. The nodes can then be highlighted and isolated by using "Views By Selected Objects" for a better view of the nodes and displacements.
