FAQ 000423 FR

Paramètres d'affichage RFEM

Is it possible to look at the principal stresses as trajectories or vectors?

Réponse

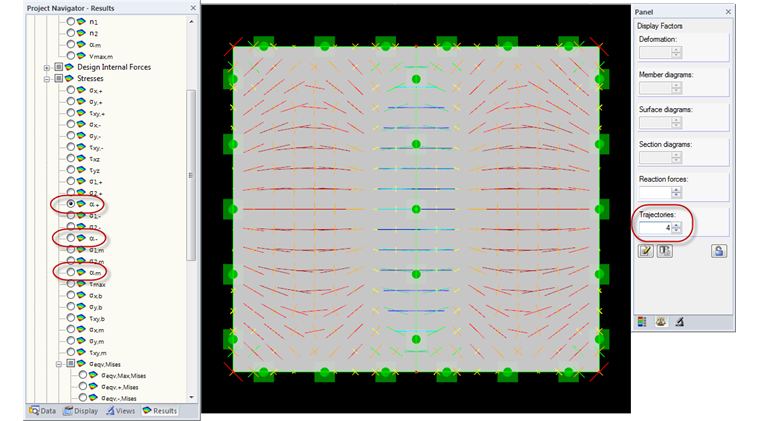

Vectorial representation of principal stresses is possible if you display the angle alpha among the stresses in the Results navigator.

Then, the values for sigma-1 and sigma-2 will be represented in the vector form separately for the stress in direction of the principal axes on the positive/negative surface side and the membrane stress in direction of the principal axes.

The scale of the trajectories can be controlled by the factor for trajectories available on the results panel.
