Printout report RF-FOUNDATION Pro

The FOUNDATION Pro add-on module shows a parts list and the concrete cubage appears. How can I print them in the printout report?

Réponse

You can select the two windows "Parts List" and "Concrete Cubage" in the printout report.

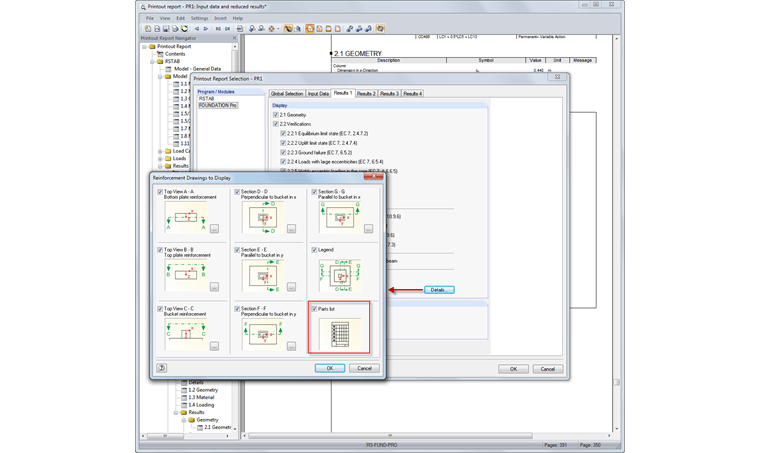

To do this, go to the global selection of the printout report (menu "Edit"), and select FOUNDATION Pro in the navigator. Then go to the "Results 1" tab. Select the "Reinforcement drawings" check box and click [Details] next to it. The "Reinforcement Drawings to Display" dialog box appears, where you select the "Parts List" check box.

After you click [OK], the parts list as well as the concrete cubage are shown together in a graphic.
