Question

In the FOUNDATION Pro add-on module, the steel schedule and concrete cubage are displayed in the last two result windows. How can I print out these two pages?


Answer:

You can select the "Steel Schedule" and "Concrete Cubage" windows in the printout report.

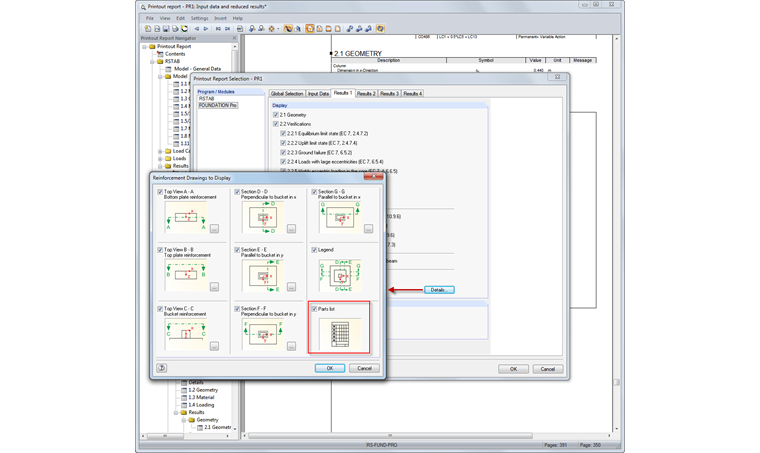

To do this, open the selection of the printout report (menu "Edit"), select FOUNDATION Pro in the navigator, and click the "Results 1" tab. Select the "Reinforcement drawings" check box and click "Details" next to it.

The "Reinforcement Drawings to Display" window will appear, where you will select the "Parts list" option.

After you confirm the selection by clicking [OK], the parts list and the concrete cubage are displayed together in a graphic.
