Paramètres d'affichage RFEM

Is there a possibility to graphically represent the diagram of line support forces with any number of value indications?

With the default setting there are only 2 values indicated.

Réponse

By default, only two values (max and min) are displayed on the result diagram of line supports.

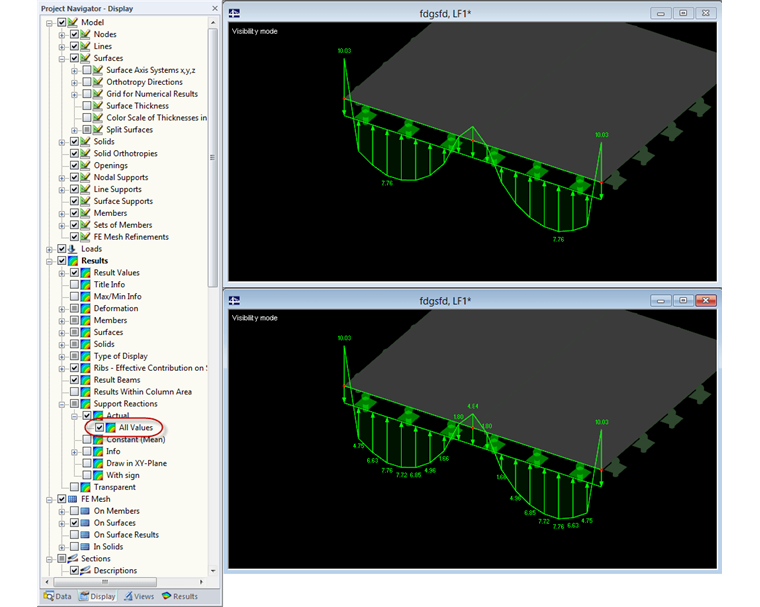

But you can also display all values by using the settings in the "Display" navigator:

"Results" --> "Support Reactions" --> "Actual" --> "All Values"

The division depends on the FE mesh: A value is displayed on each FE node.

In this way, you can influence the division, for example by a FE mesh refinement on particular surfaces or lines. In contrast, the numerical output in the result table, and thus in the printout report, is controlled only by the global FE mesh.
