FAQ 001090 FR

Paramètres d'affichage RF-CONCRETE

How can I graphically show the direction of rebars in RF-CONCRETE?

Réponse

You have two options to display the direction of reinforcement:

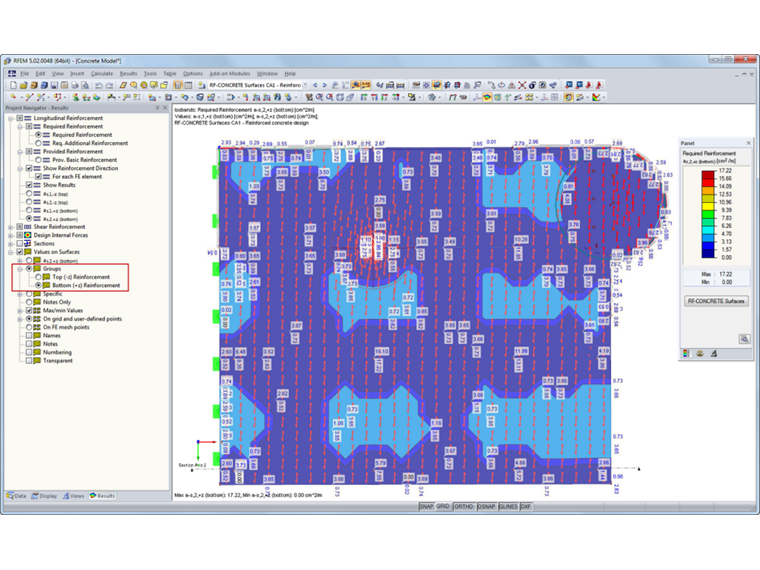

1. Select the "Show Reinforcement Direction" option in the Results navigator. If necessary, you can also activate the "For each FE element" check box. This can be particularly helpful if the direction of the FE axes is curved or radial.

2. When using the "Values on Surfaces" and the "Groups" option, the result values are shown in the direction in which the rebars are placed.
