Graphical Display of Reinforcement Direction in RF-CONCRETE

How can I graphically display the layer direction of the reinforcement in RF‑CONCRETE?

Answer:

You can display the reinforcement direction in two ways:

  1. Activate the "Show Reinforcement Direction" option in the Results navigator. In addition, you can activate the "For Each FE Element" option. It is particularly interesting if the alignment of the FE axes is curved or arranged radially.

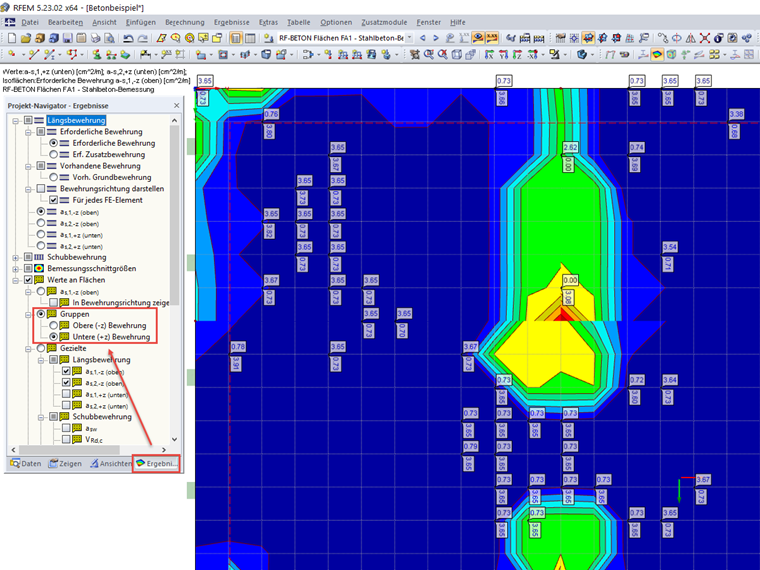

  2. When using the "Values on Surfaces" and the "Groups" option, the result values are shown in the direction in which the rebars are placed.
