RF-/FOUNDATION Pro Add-on Module for RFEM/RSTAB
Design of Single, Bucket and Block Foundations
The RF-/FOUNDATION Pro add‑on module designs single, bucket and block foundations for all support forces arising in the RFEM/RSTAB model. The design of reinforced concrete foundations is performed according to:
-
EN 1992‑1‑1:2004 + A1:2014
- EN 1997‑1
In addition to the support forces from RFEM/RSTAB, the module allows you to specify loads to be integrated into the design of a foundation. RF‑/FOUNDATION Pro provides a reinforcement concept for the upper and lower plate reinforcement, which is individually adjustable at any time.
-
Features
- Available types of foundation:
- Foundation plate (optionally without bending reinforcement)
- Bucket foundation with smooth bucket sides
- Bucket foundation with rough bucket sides
- Block foundation with smooth bucket sides
- Block foundation with rough bucket sides
- Design according to EN 1992-1-1 and EN 1997-1
- The following National Annexes of Eurocode 2 and Eurocode 7 are available:
-
Germany:
DIN EN 1992-1-1/NA/A1:2015-12 | DIN EN 1997-1/NA:2010-12 -
Austria:
ÖNORM B 1992-1-1:2018-01 | ÖNORM B 1997-1:2007-11
Denmark:
DK EN 1992-1-1/NA:2013 | DK EN 1997-1/NA:2007
Bulgaria:
BDS EN 1992-1-1:2005/NA:2011 | BDS EN 1997-1:2005/NA:2012
Finland:
SFS EN 1992-1-1/NA:2007-10 | SFS EN 1997-1/NA:2004-01-
France:
NF EN 1992-1-1/NA:2016-03 | NF EN 1997-1/NA:2006-09
Italy:
UNI EN 1992-1-1/NA:2007-07 | UNI EN 1997-1/NA:2005-01
Netherlands:
NEN EN 1992-1-1 C2:2011/NB:2016-11 | NEN EN 1997-1+C1:2012/NB:2012
Poland:
PN EN 1992-1-1/NA:2010 | PN EN 1997-1/NA:2005-05
Slovakia:
STN EN 1992-1-1/NA:2008-06 | STN EN 1997-1/NA:2005-10
Slovenia:
SIST EN 1992-1-1:2005/A101:2006 | SIST EN 1997-1/NA:2006-03
Spain:
UNE EN 1992-1-1/NA:2013 | UNE EN 1997-1:2010
Sweden:
SvenskS EN 1992-1-1/NA:2008 | SvenskS EN 1997-1:2005/AC:2009
Czech Republic:
CSN EN 1992-1-1/NA:2016-05 | CSN EN 1997-1/NA:2014-06
United Kingdom/Northern Ireland:
BS EN 1992-1-1:2004/NA:2005 | BS EN 1997-1:2004
Belarus:
CPM EN 1992-1-1:2009 | CPM EN 1997-1:2009
Cyprus:
CYS EN 1992-1-1:2004/NA:2009 | CYS EN 1997-1/NA:2004
-
In addition to the National Annexes (NA) listed above, you can also define a specific NA, applying user-defined limit values and parameters.
- Automatic calculation of governing loading from load cases
- Specification of additional support forces
- Determination of the reinforcement proposal for bottom and top plate reinforcement considering the most favorable combination of mat and rebars
- Individual adjustment of reinforcement proposal
- Results of foundation reinforcement in detailed reinforcement drawings
- Results displayed in tables and graphics
- Visualization of foundation, columns and reinforcement in 3D rendering
- Available types of foundation:
-
Input
Foundations are assigned graphically by selecting supports using the [Select] function in the graphical user interface of RFEM/RSTAB and by specifying the load cases to be designed. You can quickly and easily define all other foundation details in clearly arranged input windows.
In addition to all support forces from RFEM/RSTAB, you can specify further loads to be considered when dimensioning the foundations. The following additional loadings are available:
- Pemanent surface load due to earth covering
- Negative surface load, for example due to traffic
- Ground water level for uplift consideration
- Concentrated loads in any position on the foundation plate
- Line loads with any distribution over the foundation plate
-
Design
It is possible to perform the following designs:
- Equilibrium limit state design
- Uplift limit state design
- Ground failure (soil contact pressure) design
- Strong eccentric loads design
- Design of foundation torsion and limitation of gaping joint
- Sliding design
- Settlement calculation
- Bending failure design of the plate and bucket
- Punching shear design
Foundation and bucket dimensions can be user-defined or determined by the module. You can manually edit the determined reinforcement. In this case, the designs are automatically updated.
-
Results
The program creates a reinforcement proposal for the top and the bottom plate reinforcement. Program searches automatically the most favorable combination of a mat and added rebars. If required, the rebars are distributed across two reinforcement areas by curtailment. It is possible to modify individually the reinforcement proposal by:- Application of another mat type
- Individual control of diameter and spacing of added rebars
- Free selection of reinforcement area widths
- Individual curtailment of reinforcements

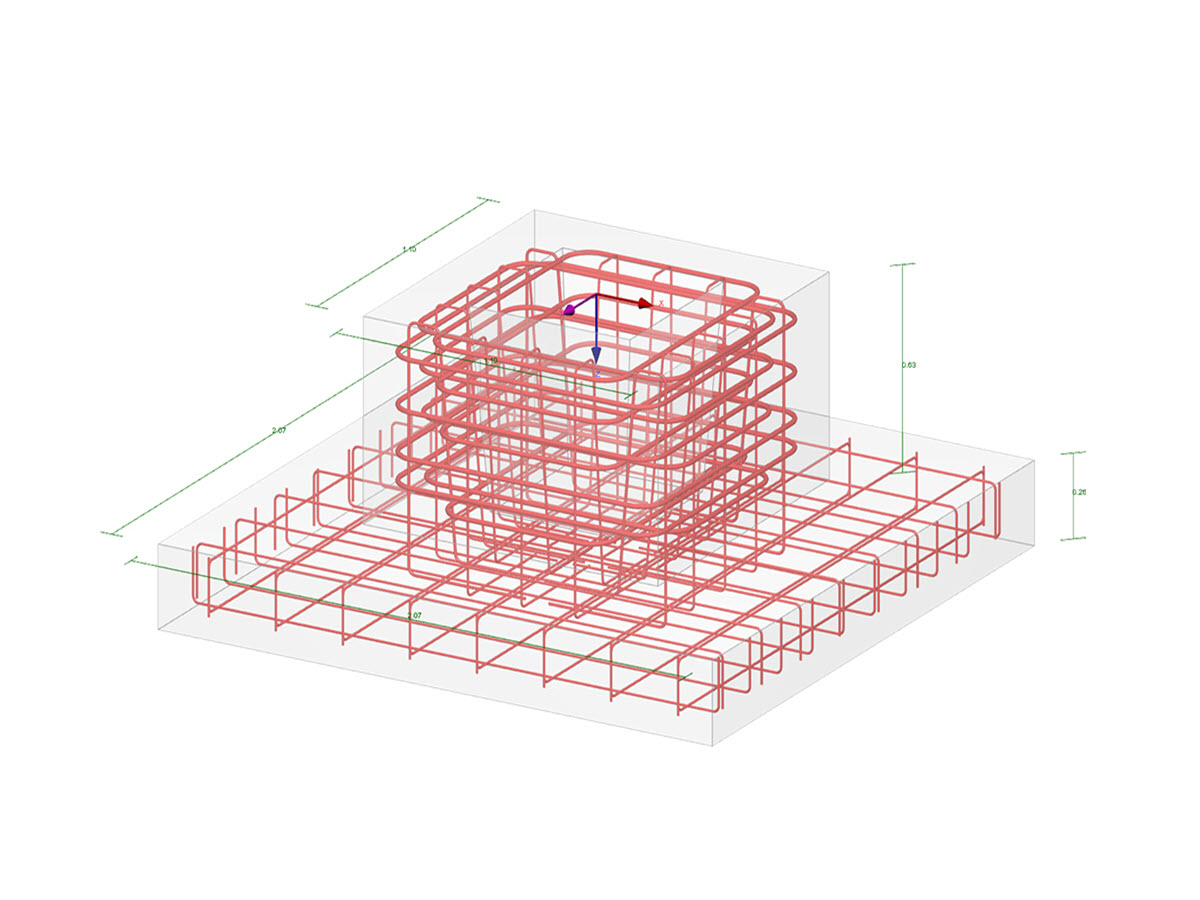

You can display the foundation in excellent rendering quality including reinforcement. In the rendering as well as in up to seven different dimensioned reinforcement drawings ready for construction, the module provides solution proposal for bucket design. It is possible to modify number, position, diameter, and spacing of used rebars here as well. You can determine also the shape of applied links.
Dimensions of foundation plate and bucket can be determined by the add-on module or user-defined. Clearly arranged windows display results of each performed design including all intermediate values. They are covered in a reduced printout report providing a verifiable structural analysis.
Contact Us
Do you have any questions about our products or which are best suited for your design projects? Contact us via phone, email, or chat or find suggested solutions and useful tips on our FAQ page available 24/7.
Customer Projects
Price
Database of Foundation Templates
In RFEM 5 as well as RSTAB 8 in RF-/FOUNDATION Pro, you can save the foundation dimensions for all five foundation types as foundation templates in a user-defined database and use them later in other models.
New
The deformation is determined for members and surfaces, taking into account the cracked (state II) or non-cracked (state I) reinforced concrete cross-section. When determining the stiffness, the tension stiffening between the cracks, the so-called "tension stiffening," can be considered according to the design standard used.- Does the program check the lap length of the vertical stirrups of a block foundation with smooth bucket sides?
- How is the static depth d calculated in the bending design of block foundations (calculation as equivalent beams)?
- Is it also possible to perform the crack width analysis according to EN 1992‑1‑1, Section 7.3, in RF‑/FOUNDATION Pro?
- I cannot open the dialog box for entering the soil profile in FOUNDATION Pro anymore. Why?
- Where on the foundation is the load applied in the design with FOUNDATION Pro?
- What is the difference between the add-on modules RF‑/FOUNDATION and RF‑/FOUNDATION Pro?
- In RF‑FOUNDATION Pro, I get Error Message No. 30195. What can I do?
- How can I enter the earth covering of a bucket foundation up to 10 cm below the top edge of the bucket in RF‑/FOUNDATION Pro?
- Which principles are used for the design of the lap length performed in RF‑/FOUNDATION Pro? And can I deactivate this design?
- Can I somehow verify the bending moment from the integration of contact stresses determined in RF‑/FOUNDATION Pro?
