Is it possible to import CAD drawings to RFEM and to convert the drawing into an RFEM model?

Réponse

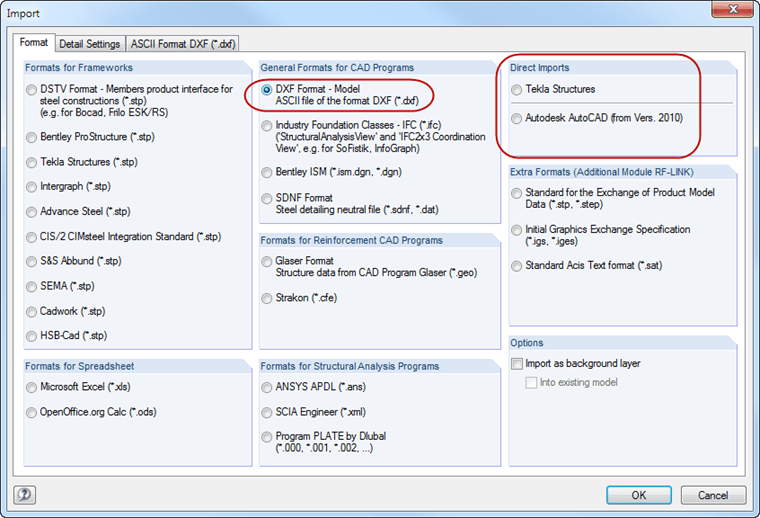

The import of DXF files created for example with AutoCAD is possible.

Lines of the DXF file are created as lines in RFEM. In this way, the geometry can be completely generated by import. Then, the imported lines can be used as surface boundaries or member axes etc. for modeling the structure.

There is also the possibility of a direct import.

Find descriptions for the interfaces with Tekla Structures and Autodesk AutoCAD Revit at www.dlubal.com/en/manuals-for-category-interfaces.aspx.
