Paramètres d'affichage RFEM

How can I print the graphic (for example, isolines for the bottom reinforcement) without color and with the isolines showing numeric values?


If you select the "Texts and lines in black" function, the isolines will still be printed in color. This is because the settings of this option apply only for structural data. Because the isolines are used for the results display, they are printed in color.

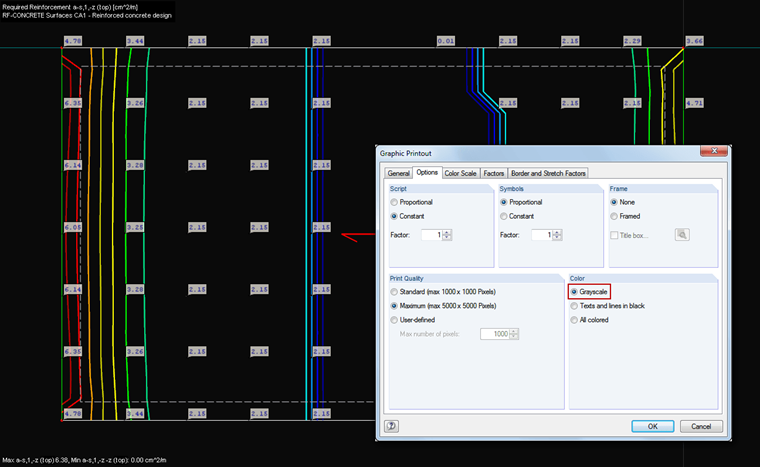

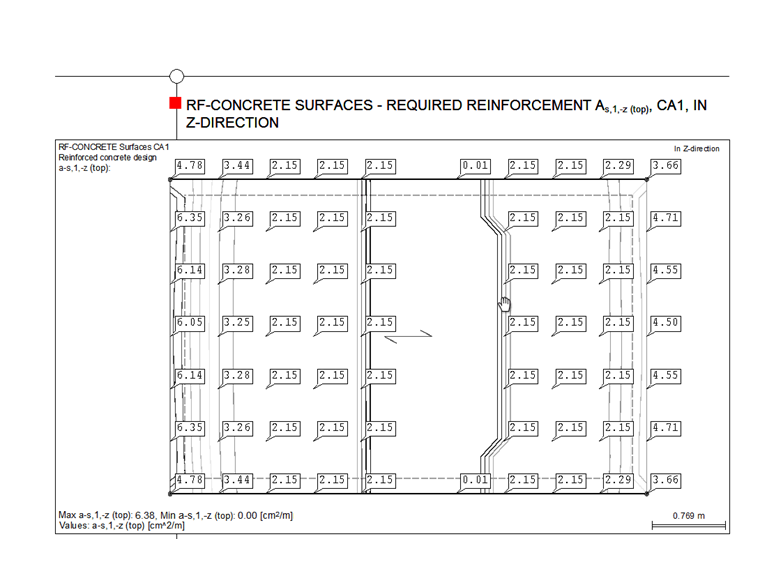

To show the results also without color, use the "Grayscale" option.

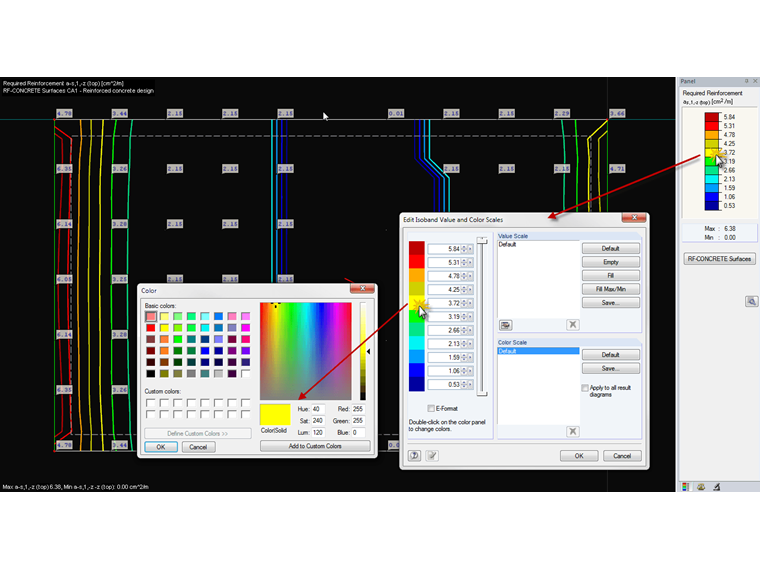

If, for example, the yellow isolines are displayed as weak, light grey lines in the printout report, you can change this in the color panel accordingly. To do this, double-click the color scale in the panel. In the "Edit Isoline Value and Color Spectra" dialog box, you can change the individual colors by double-clicking the corresponding color.

You can save the changed color scale in this dialog box. To reset the original colors, use the [Default] button.
