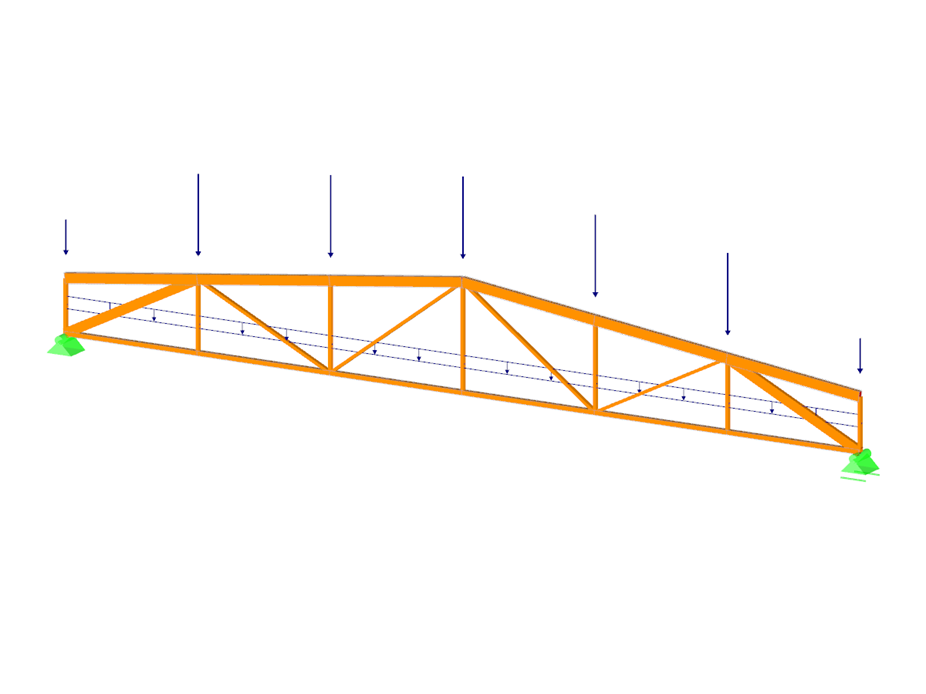

This model shows the structure of a timber truss, which serves as an efficient composite structure. The arrangement of the struts and nodes ensures optimum load transfer, which is particularly important in timber structures. The truss structure guarantees stability and load-bearing capacity while saving material.
Timber Truss Girder
| Number of Nodes | 14 |
| Number of Members | 25 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 2 |
| Total Weight | 0,317 t |
| Dimensions (Metric) | 16.300 x 0.300 x 2.150 m |
| Dimensions (Imperial) | 53.48 x 0.98 x 7.05 feet |
| Program Version | 7.04.13 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
