Generation of Wind Loads Based on CFD for Any Type of Structure
RWIND 3 is used to determine wind loads for buildings. In addition to a 3D model, all you need is a wind load description. The program automatically determines all other parameters for the flow simulation, so the analysis is performed at the push of a button.
RWIND 3 is a stand-alone program, but can also interact with the structural analysis programs RFEM and RSTAB.

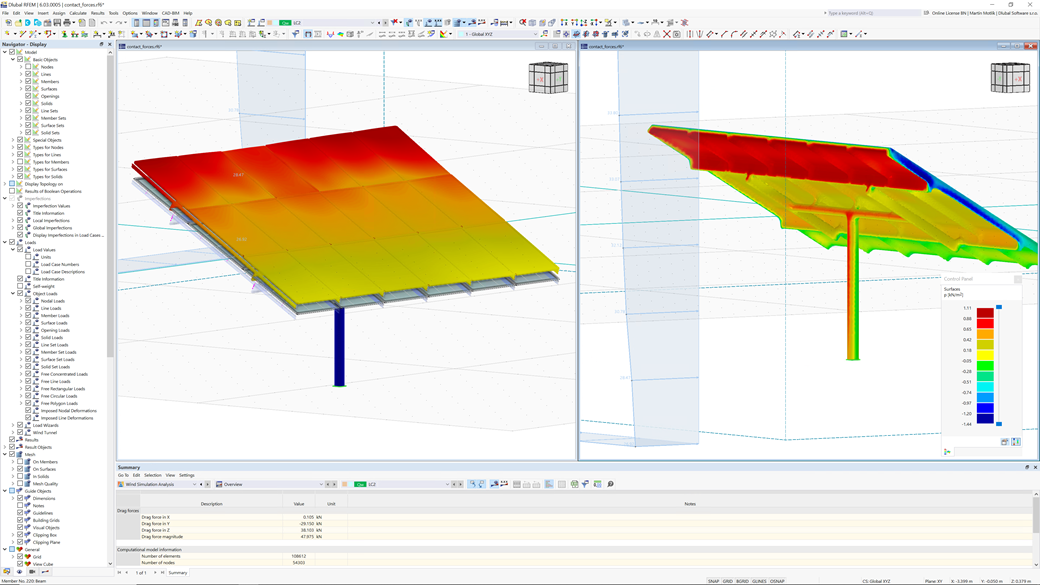

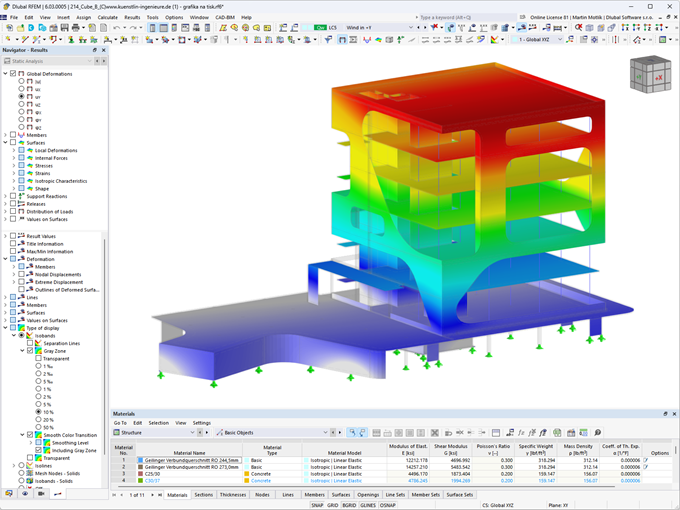

The usual workflow includes creating a model in RFEM or RSTAB and then performing the wind analysis in RWIND using a digital wind tunnel. In this case, RWIND can optionally run in the background. The wind loads determined in RWIND are then applied to RFEM and RSTAB.
RWIND is suitable not only for buildings in structural engineering, but for all (including complex) structures.
Video: Calculation of Wind Loads with CFD Simulation

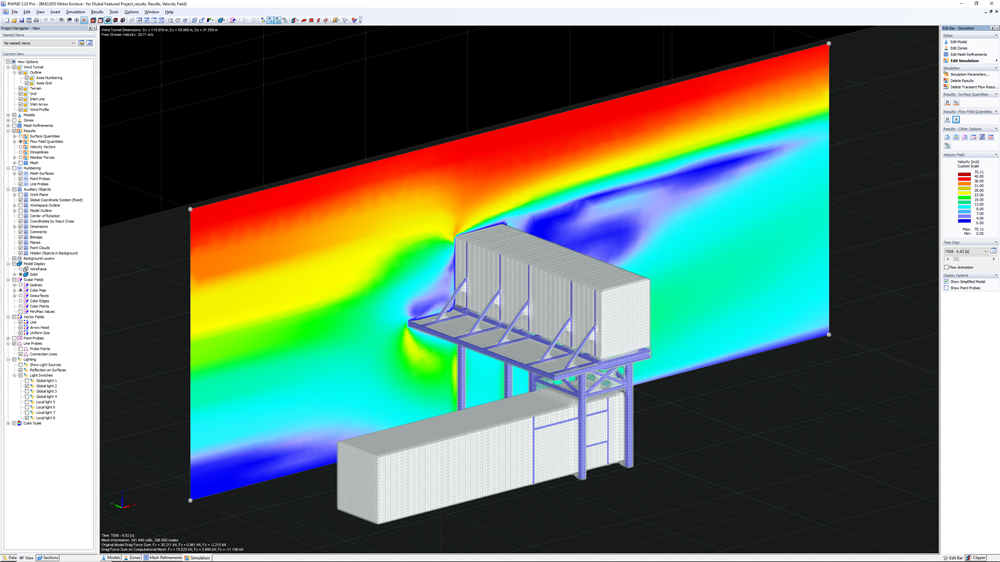

Container Structure in Digital Wind Tunnel in RWIND | © Modular Structural Consultants LLC
Calculation of Wind Loads with CFD Simulation
Calculation of Wind Loads with CFD Simulation
Video: Calculation of Wind Loads with CFD Simulation
Main Features of RWIND 3
Graphical Workspace
The graphical workspace takes up the main part of the user interface. There you can create the model, apply loads, as well as examine the results. By clicking or rotating the cube (hold down the left mouse key while moving the pointer), you can control the view. As an alternative, you can use the mouse functions to set the view.
Navigator
The navigator manages the file data in a tree structure. At the bottom edge, there are three tabs (four after the calculation). Use them to switch between the tabs that control the Data, Display, Views, and Results.
Edit Bar – Simulation
The Edit Bar – Simulation guides you through the simulation settings, including the basic control of the individual simulation results. In the window, you can find a result box, a reference to further model changes and the components for editing the results.
Simulation Parameters
The Simulation Parameters dialog boxes guide you through the settings of the wind simulation, for example: Setting of the transient flow behavior or the wind profile.
Intuitive User Interface
As in RFEM and RSTAB, the user interface of RWIND is based on the CAD concept. A navigator with an editing window ensures easy navigation and control of the simulations. In the navigator, you can find the functions required for controlling the model display, including the result display. The editing window allows you to control the simulation results, define their properties and run the individual simulations, such as the flow animation, or the display of pressure or wind velocity fields.
Moreover, RWIND provides you with an intuitive user interface, allowing you to easy control and customize your simulations. Dlubal Software is constantly working on updates and improvements of the existing features. The useful features of RWIND include:
RFEM 6 / RSTAB 9
To model the bodies in RWIND Basic, you will find a special application in RSTAB. In this application, you define the wind directions to be analyzed using related angular positions around the vertical model axis.
RWIND 3

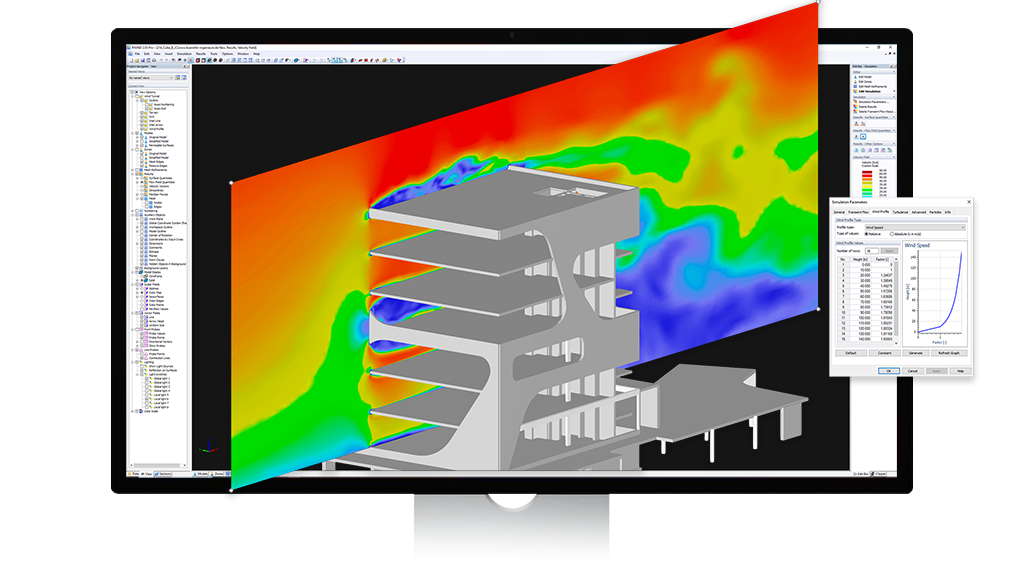

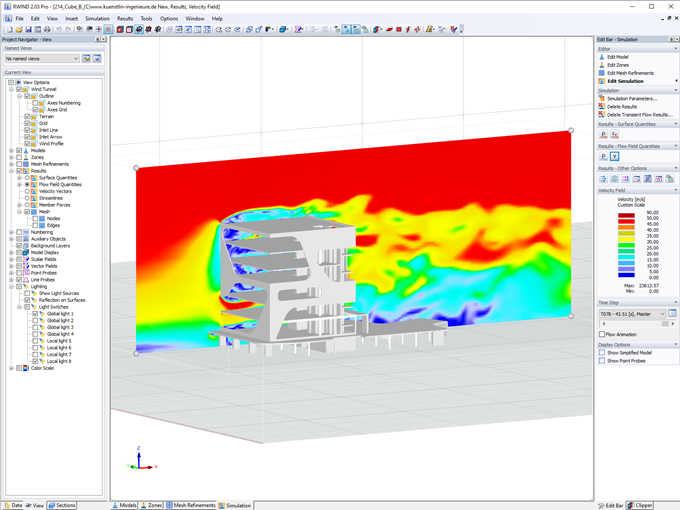

RWIND uses a numerical CFD (Computational Fluid Dynamics) model to simulate wind flows around your objects using a digital wind tunnel.
RWIND 3 Basic
RWIND 3 Pro
Steady Flow Calculation
Transient Flow Calculation
Steady Flow Turbulence Model: RAS k-ε, k-ω

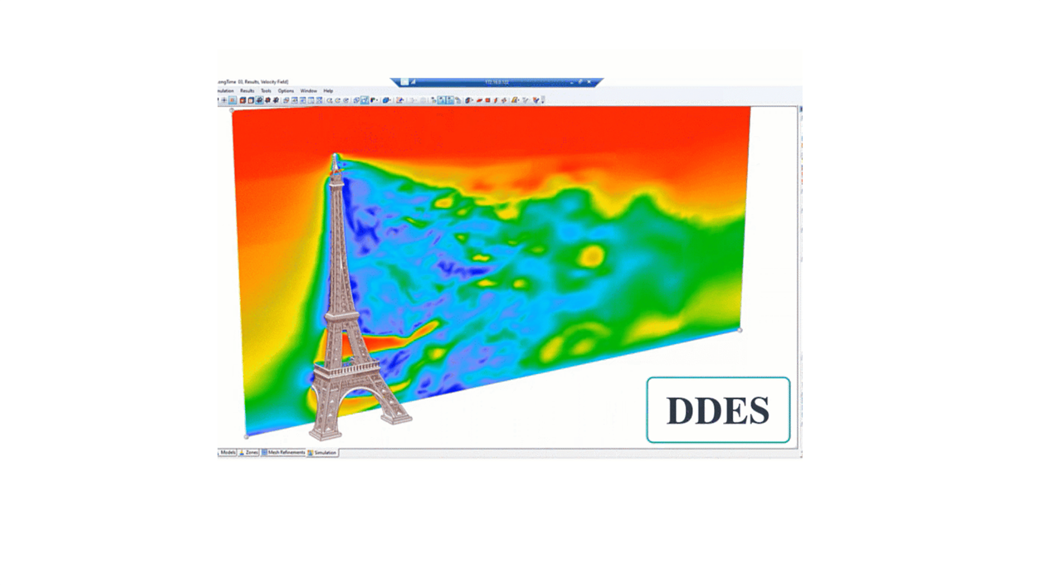

Transient Flow Turbulence Model: Spalart-Allmaras DDES
Trajectories of Flowing Particles in Transient Flow
Permeability, Permeable Surfaces
Use RWIND 2 Pro to easily apply a permeability to a surface. All you need is the definition of the Darcy coefficient D, the inertial coefficient I, and the length of the porous medium in the direction of flow L,to define a pressure boundary condition between the front and back of a porous zone. Due to this setting, you obtain the flow through this zone with a two-part result display on both sides of the zone area.
Point Cloud Object Type
Model Editor (Model Creation, Model Repair,...)
Edit Object Functions
Terrain Editor
Auxiliary Objects
Verification Data in Probes
