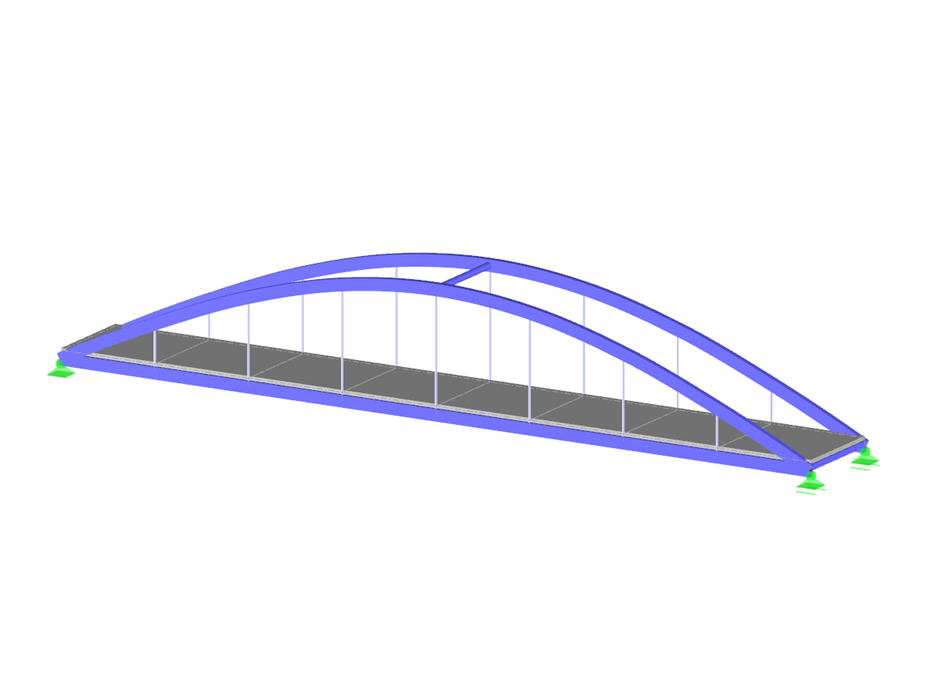

The model analyzes a pedestrian bridge in terms of the dynamic loads caused by pedestrians moving on it. A time-history analysis was carried out using the RF-DYNAM Pro module, which was developed specifically for walking and running. This analysis allows for the precise simulation and evaluation of the impact of moving people on the bridge. The model focuses on the structural integrity and vibration properties under dynamic effects.
Model Used in
Time History Analysis of Pedestrian Bridge
| Number of Nodes | 35 |
| Number of Lines | 45 |
| Number of Members | 45 |
| Number of Surfaces | 8 |
| Number of Load Cases | 33 |
| Number of Result Combinations | 2 |
| Total Weight | 16.265 t |
| Dimensions (Metric) | 20.500 x 3.000 x 3.250 m |
| Dimensions (Imperial) | 67.26 x 9.84 x 10.66 feet |
| Program Version | 5.05.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
