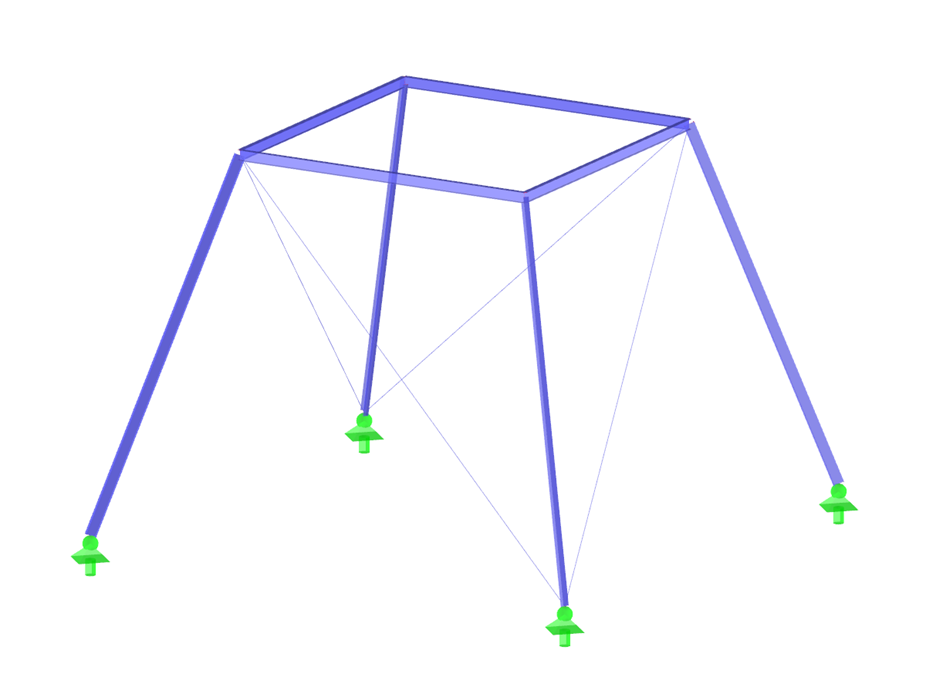

The model shows a steel frame reinforced by tie rods. It illustrates how additional connections can increase the stability of a steel structure. The structure shows precise details of frame structure and the effective use of steel as a building material. The example serves as a practical starting point for more in-depth technical analysis. The illustration is an excellent place to test connection techniques.
Steel Frame with Tie Rod Reinforcement
| Number of Nodes | 8 |
| Number of Members | 12 |
| Number of Load Cases | 3 |
| Number of Result Combinations | 1 |
| Total Weight | 1,251 t |
| Dimensions (Metric) | 10.500 x 10.500 x 7.250 m |
| Dimensions (Imperial) | 34.45 x 34.45 x 23.79 feet |
| Program Version | 8.28.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
