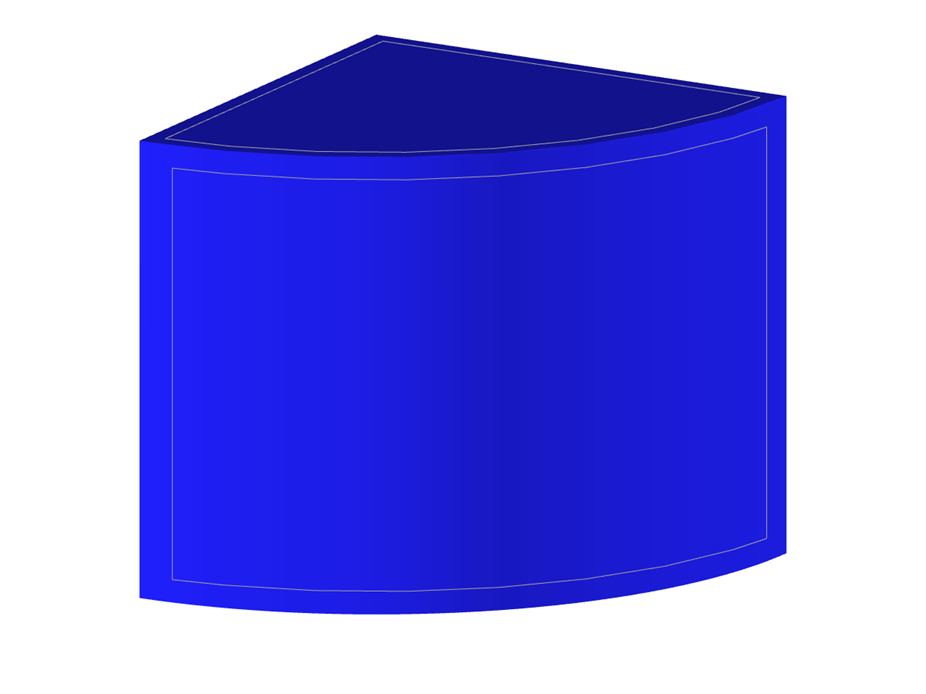

This model is presented to show how RFEM removes unused neutral axis lines to improve data quality and geometric precision by providing precise length information. This approach makes it easier to optimize the model structure. The graphical display shows a circular segment to demonstrate the effect of neutral axis line removal.
Circular Segment and Neutral Axis Line Optimization
| Number of Nodes | 8 |
| Number of Lines | 11 |
| Number of Surfaces | 5 |
| Number of Solids | 1 |
| Total Weight | 59.369 t |
| Dimensions (Metric) | 2.837 x 2.837 x 2.837 m |
| Dimensions (Imperial) | 9.31 x 9.31 x 9.31 feet |
| Program Version | 5.23.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
