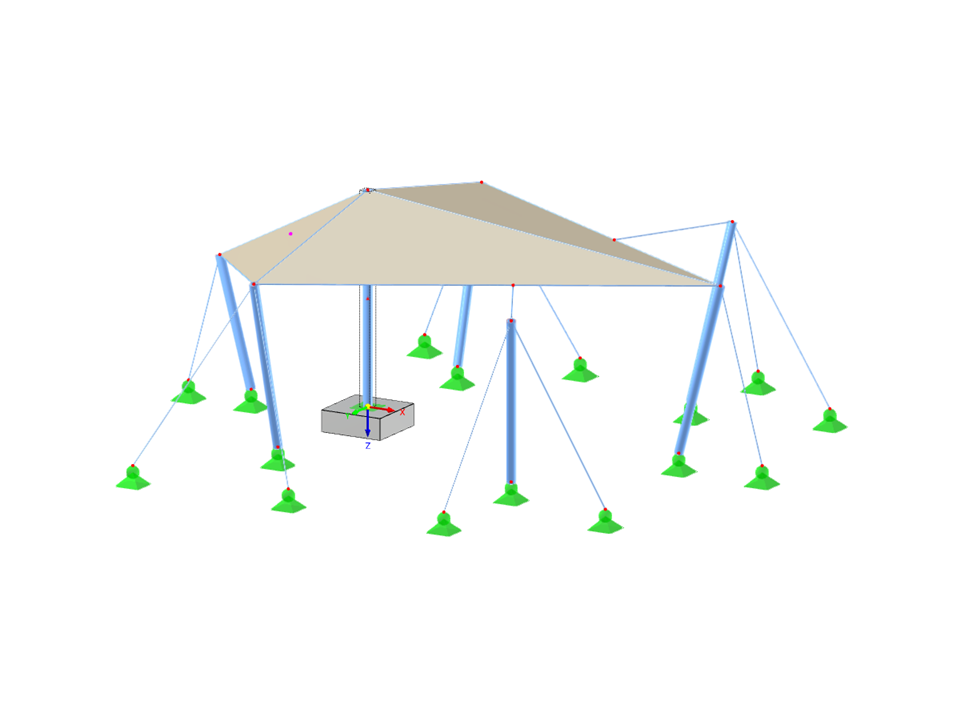

This model shows a structure that uses PES/PVC (polyester with PVC coating) membranes, tension cables, steel columns, and a robust foundation. It was presented in the webinar "Membrane Structures in RFEM 6" on October 24, 2024, which highlights its applicability in advanced studies of guyed systems. Ideal for analyzing the behavior of membranes under real load conditions.
Tension Structure with PES-PVC Membrane and Cables
| Number of Nodes | 26 |
| Number of Lines | 27 |
| Number of Members | 27 |
| Number of Surfaces | 4 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 5 |
| Number of Result Combinations | 0 |
| Total Weight | 0,901 t |
| Dimensions (Metric) | 14,751 x 5,000 x 14,000 m |
| Dimensions (Imperial) | 48.4 x 16.4 x 45.93 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
