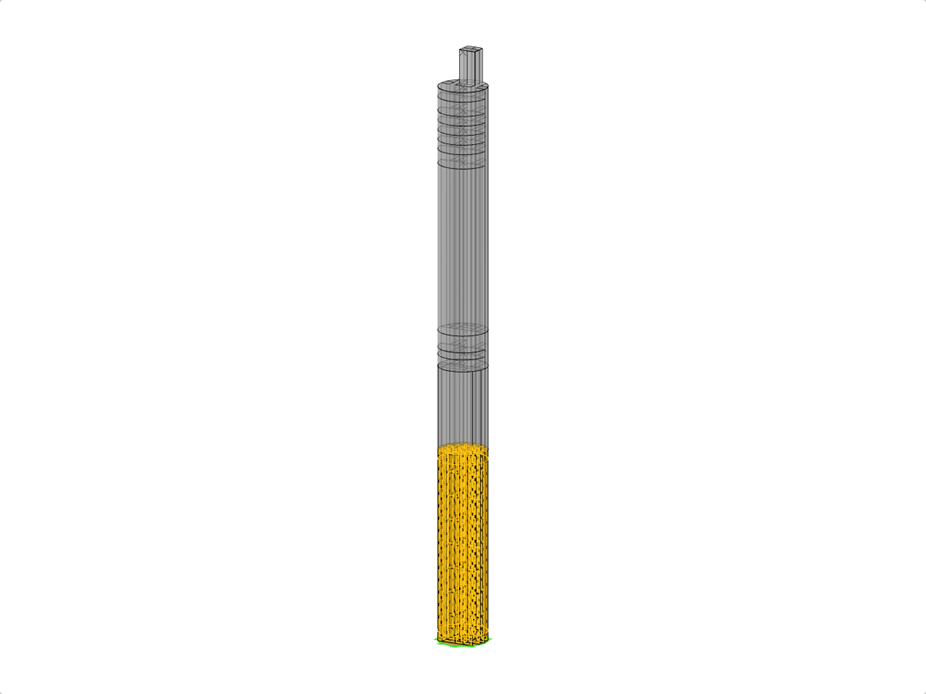

The structural analysis and design of the TK Elevator test tower in Rottweil is in the focus of this model analysis. The tower is a remarkable example of modern engineering. The analysis covers the structural details and special features that are characteristic of high-rise buildings. This work could serve as a reference for similar construction projects and provides extensive insights into the structural challenges involved.
TK Elevator Test Tower in Rottweil
| Number of Nodes | 558 |
| Number of Lines | 594 |
| Number of Members | 0 |
| Number of Surfaces | 145 |
| Number of Solids | 0 |
| Number of Load Cases | 9 |
| Number of Load Combinations | 80 |
| Number of Result Combinations | 0 |
| Total Weight | 29767.330 tons |
| Dimensions (Metric) | 20,600 x 246,000 x 20,400 m |
| Dimensions (Imperial) | 67.59 x 807.09 x 66.93 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
