#### Curtailment of Longitudinal Tension Reinforcement

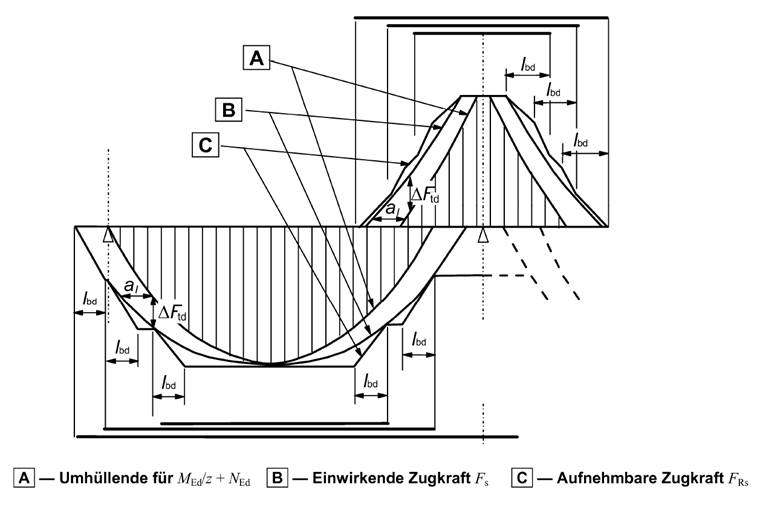

The design of the curtailment of the longitudinal tension reinforcement ensures that the envelope of the acting tensile force FSd can be absorbed by the provided reinforcement. 9.2.1.3(2) of EN 1992‑1‑1 [1] requires to also consider the additional tensile force ΔFtd due to the shear force. For structural components with shear reinforcement, this additional tensile force ΔFtd can be calculated according to 6.2.3 (7) of EN 1992‑1‑1 [1]. The tensile force FSd is calculated from the following equation:

$\begin{array}{l}{\mathrm F}_\mathrm{sd}\;\;=\;\;\left(\frac{{\mathrm M}_\mathrm{Eds}}{\mathrm z}\;+\;{\mathrm N}_\mathrm{Ed}\right)\;+\;{\mathrm{ΔF}}_\mathrm{td}\\\mathrm{where}\\{\mathrm{ΔF}}_\mathrm{td}\;=\;0.5\;\cdot\;{\mathrm V}_\mathrm{Ed}\;\;\cdot\;(\cot\;\mathrm\theta\;–\;\cot\;\mathrm\alpha)\end{array}$

For structural components without shear reinforcement, the tensile force ΔFtd may be taken into account by shifting the tensile force curve from $\left(\frac{{\mathrm M}_\mathrm{Eds}}{\mathrm z}\;+\;{\mathrm N}_\mathrm{Ed}\right)$ about a distance of al = d in the unfavourable direction. This approach may also be used as an alternative to the approach for structural components with shear reinforcement mentioned above. In this case, this 'shift rule' is determined according to the formula ${\mathrm a}_\mathrm l\;=\;0.5\;\cdot\;\mathrm z\;\cdot\;(\cot\;\mathrm\Phi\;-\;\cot\;\mathrm\alpha)$.

The resistant tensile force FRs of the provided reinforcement is determined within the anchorage lengths lbd.

#### Graphical Display of Reinforcement Covering Line / Curtailment of Longitudinal Reinforcement

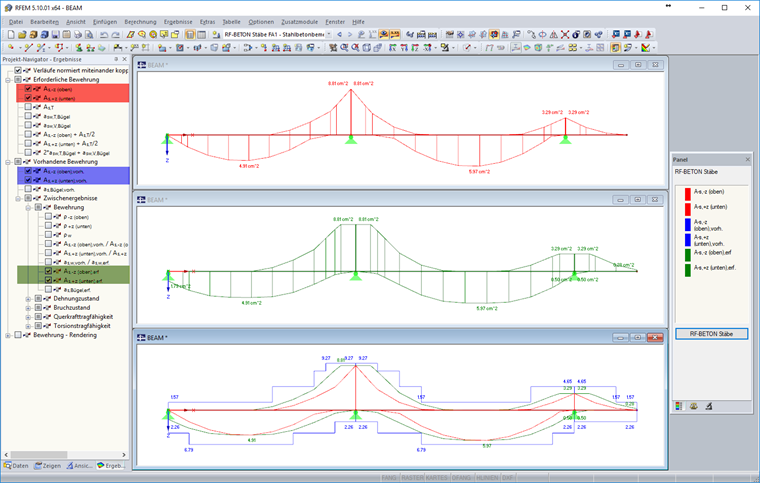

If the tensile force of the curtailment of longitudinal reinforcement is divided by the design stiffness fyd of the reinforcing steel, a reinforcement covering line is obtained. In RF-CONCRETE Members and CONCRETE, the distribution of the required tension reinforcement As (the first result diagram in Figure 02) is shifted by the shift rule a1 in order to obtain the envelope of the required reinforcement (the second result diagram in Figure 02). You can display these shifted required reinforcement envelopes graphically by selecting 'Detailed results' under 'Provided Reinforcement' in the result navigator (see Figure 02).

If the envelope of the required reinforcement (red), the shifted envelope of the required reinforcement (green), and the provided reinforcement (blue) are shown graphically together, a reinforcement covering line is obtained (the third result diagram in Figure 02). This diagram corresponds to the curtailment of longitudinal reinforcement in Figure 9.2 of EN 1992‑1‑1.
