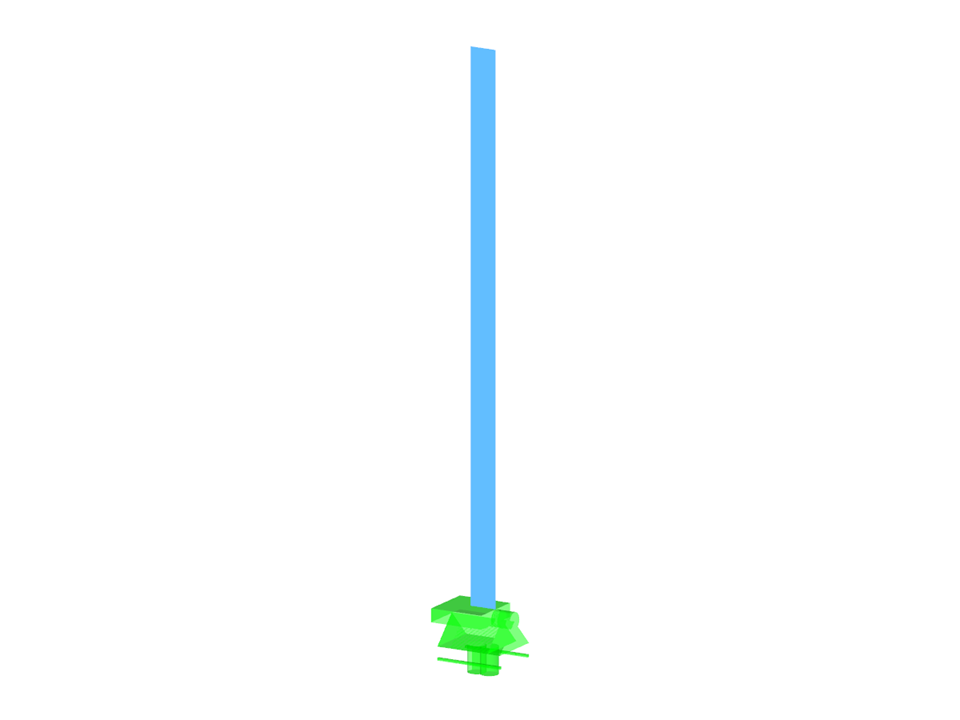

A cantilever with fibers, which don't run in direction of the beam axis, from a square cross‑section with a tensile pressure. Calculation of the maximum deflection.
Model Used in
Verification Example 000007 | 3
| Number of Nodes | 4 |
| Number of Lines | 4 |
| Number of Surfaces | 1 |
| Number of Load Cases | 1 |
| Dimensions (Metric) | 0.500 x 0.500 x 1.250 m |
| Dimensions (Imperial) | 1.64 x 1.64 x 4.1 feet |
| Program Version | 5.03.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
