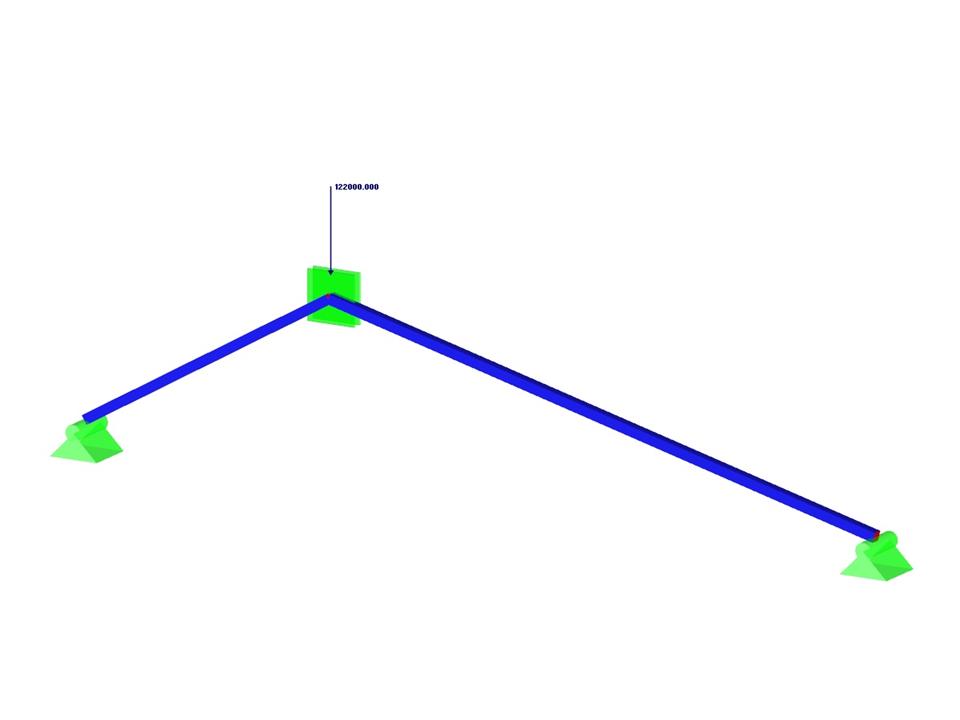

A structure is made of two trusses of unequal length, which are embedded into the hinge supports. The structure is loaded by the concentrated force.
Model Used in
Verification Example 000046 | 3
| Number of Nodes | 3 |
| Number of Members | 2 |
| Number of Load Cases | 1 |
| Total Weight | 0.707 tons |
| Dimensions (Metric) | 8.908 x 0.500 x 2.000 m |
| Dimensions (Imperial) | 29.23 x 1.64 x 6.56 feet |
| Program Version | 8.04.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
