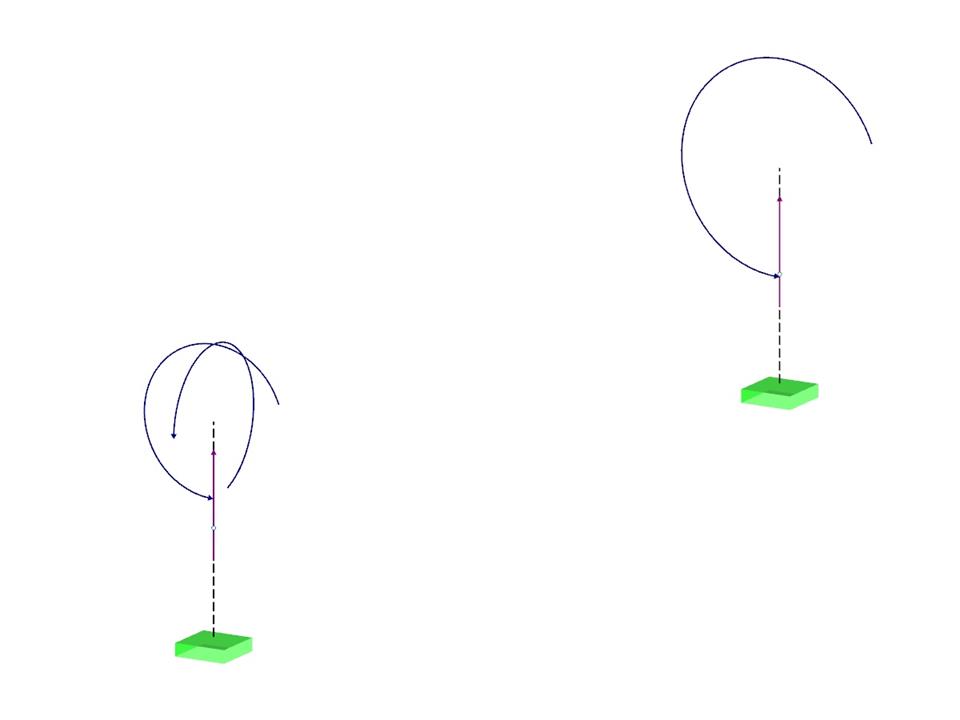

Consider a scaffolding tube connection subjected to an axial force and a moment. Self-weight is not considered. The material of the tube is idealized as perfectly rigid. All geometrical non-linearities are ignored.
Model Used in
Verification Example 000057 | 2
| Number of Nodes | 6 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Load Cases | 1 |
| Dimensions (Metric) | 0.500 x 10.500 x 2.250 m |
| Dimensions (Imperial) | 1.64 x 34.45 x 7.38 feet |
| Program Version | 5.04.23 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
