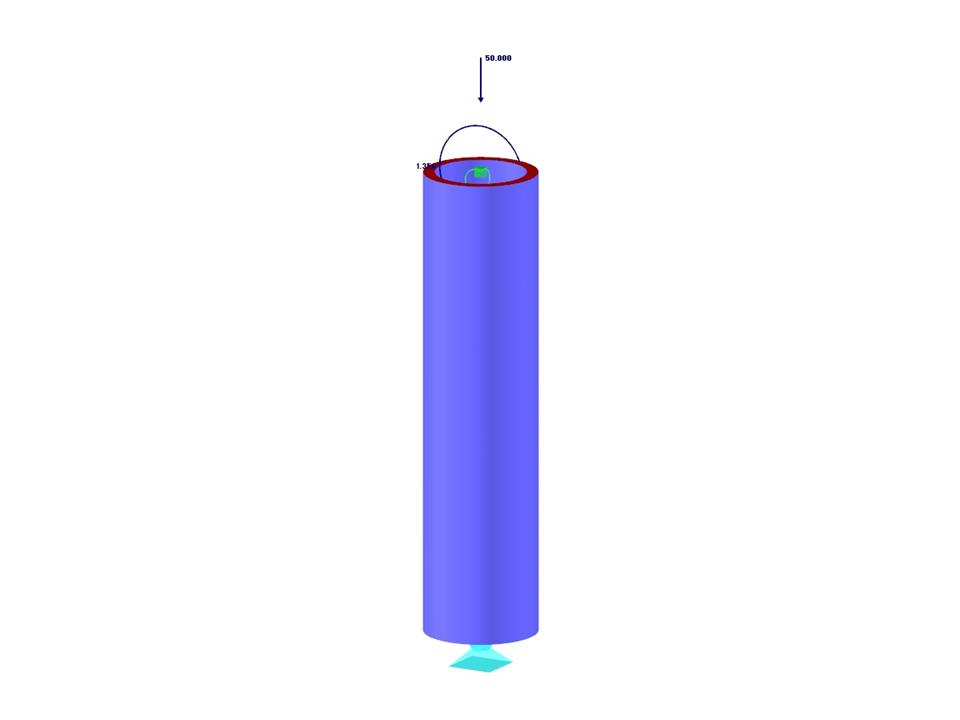

Consider a rigid scaffolding tube, fixed at the bottom using the scaffolding nodal support and loaded by both a moment and a force. Calculation of the maximum deflection by exceeding the capacity of the scaffolding support.
Verification Example 000058 | 1
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Load Cases | 1 |
| Total Weight | 0.135 tons |
| Dimensions | 1.64 x 1.64 x 4.92 feet |
| Program Version | 5.04.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
