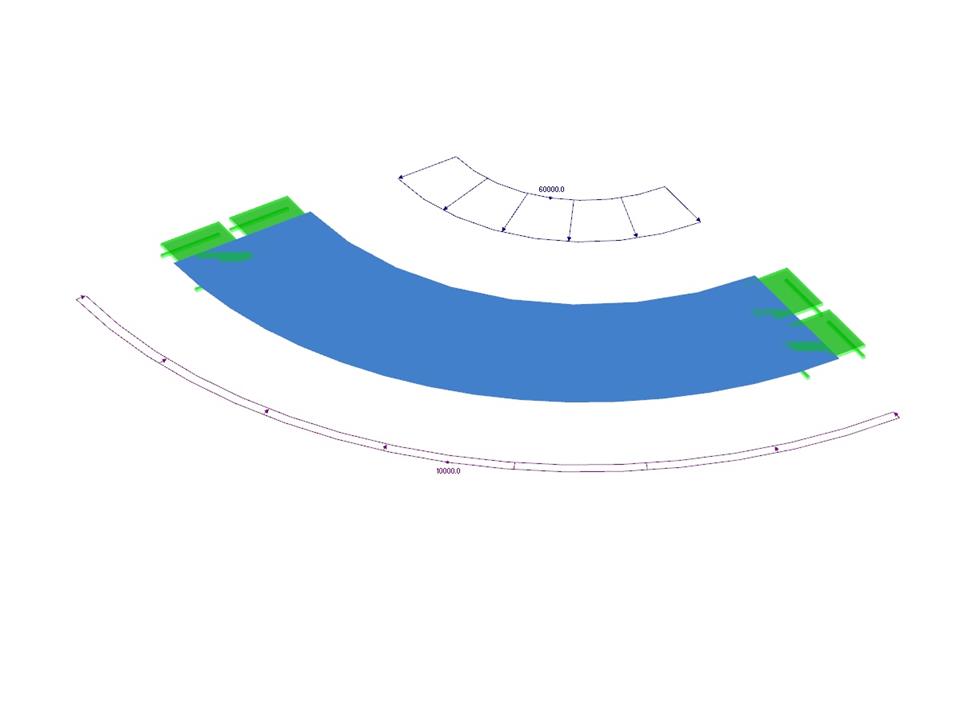

This example is a modification of Verification Example 0061, where the only difference is that the material of the vessel is incompressible. An open‑ended thick‑walled vessel is loaded by inner and outer pressure. While neglecting self‑weight, the radial deflection of the inner and outer radius is determined.
Verification Example 000067 | 1
| Number of Nodes | 4 |
| Number of Lines | 4 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Dimensions | 0.98 x 0 x 0.98 feet |
