A circular steel plate is clamped around its circumference. Determine the natural frequencies of the circular plate.

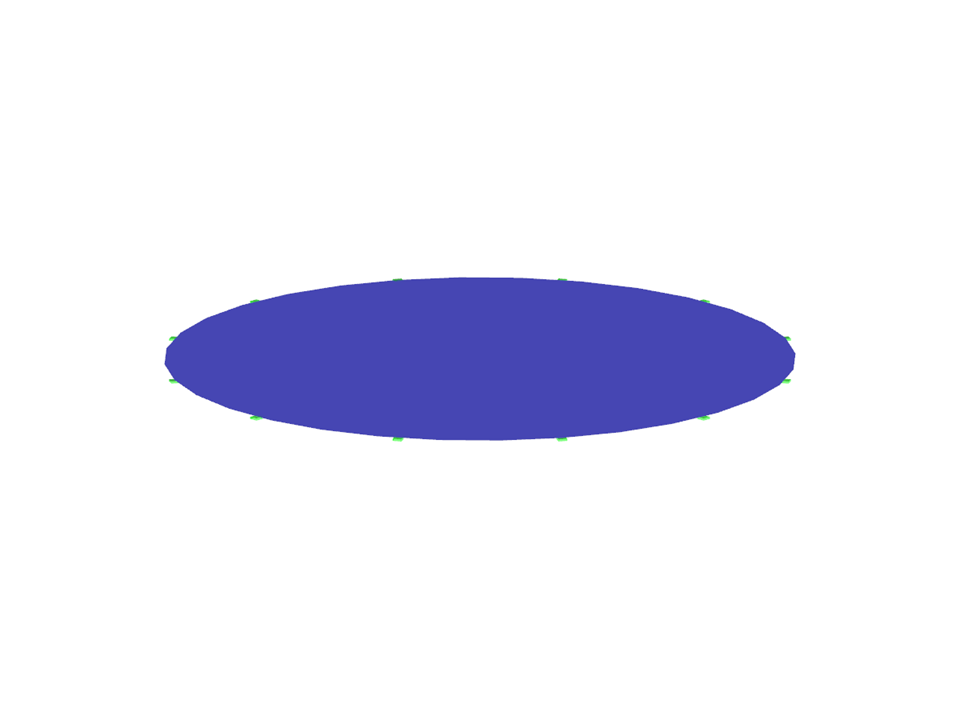

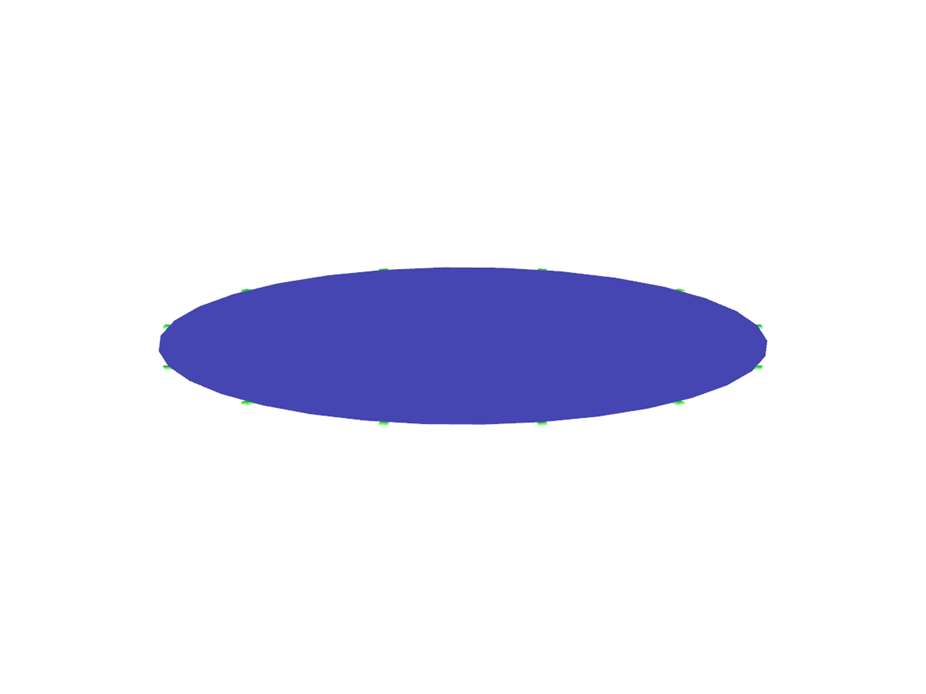

Verification Example 000109 | 1
| Number of Nodes | 3 |
| Number of Lines | 1 |
| Number of Surfaces | 1 |
| Total Weight | 0.006 tons |
| Dimensions (Metric) | 1.000 x 1.000 x 0.000 m |
| Dimensions (Imperial) | 3.28 x 3.28 x 0 feet |
| Program Version | 5.09.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
