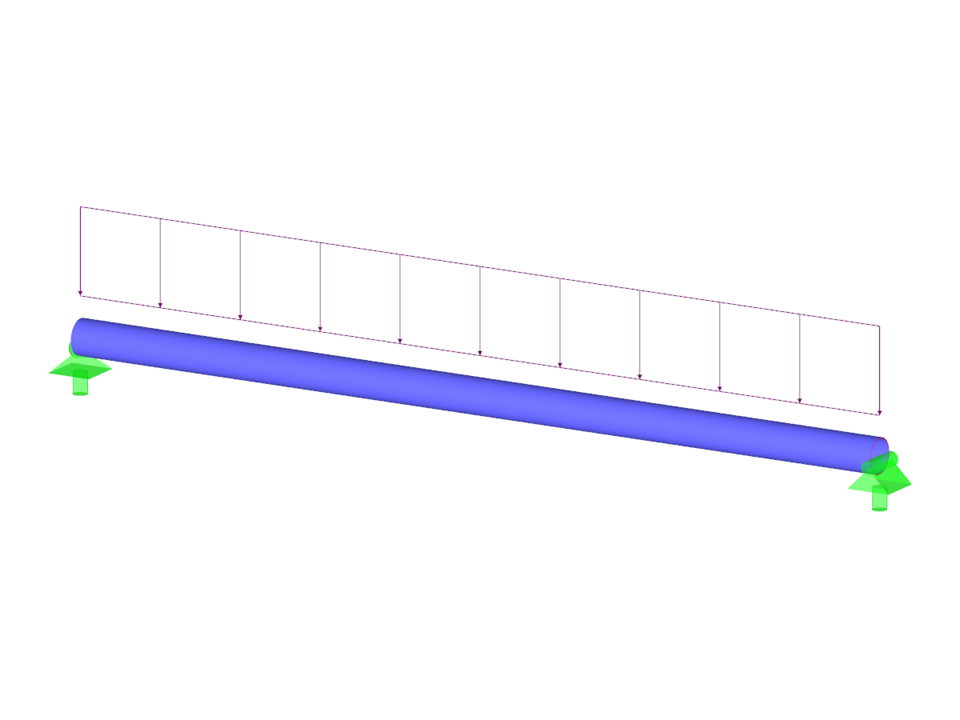

An ASTM A992 W 24×62 beam with end shears of 48.000 and 145.000 kips from dead and live load is shown in Figure 1. Verify the available shear strength of the beam selected based on LRFD and ASD.
Verification Example 001005 | 5
Number of Nodes | 2 |
Number of Lines | 1 |
Number of Members | 1 |
Number of Load Cases | 2 |
Number of Load Combinations | 2 |
Total Weight | 0.850 tons |
Dimensions | 34.15 x 2.15 x 2.15 feet |
Program Version | 5.16.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
