The model represents a single-span beam that is subjected to distributed loads. RSTAB enables a precise simulation of the load distribution and stress. This model serves as a basic application example for the calculation of distributed loads on single-span beams. It provides engineers with a clear representation of the load effect analysis in demanding load scenarios.

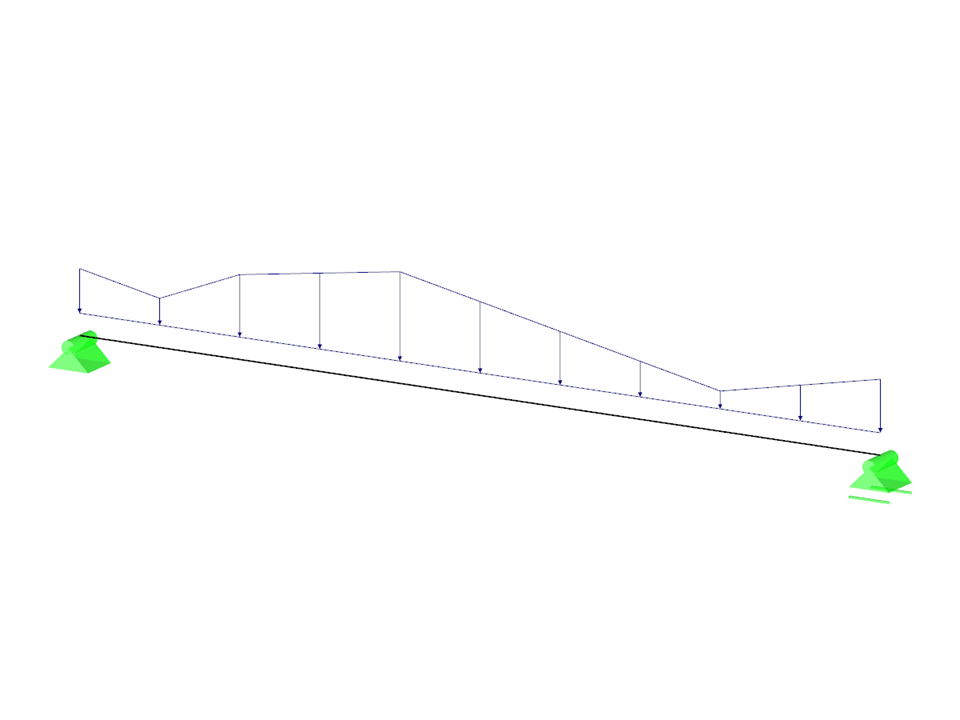

Single-Span Beam with Uniform Loads
No Download Possible
Customer Project / View Only
| Number of Nodes | 2 |
| Number of Members | 1 |
| Number of Load Cases | 1 |
| Total Weight | 0,000 t |
| Dimensions (Metric) | 10.500 x 0.500 x 0.500 m |
| Dimensions (Imperial) | 34.45 x 1.64 x 1.64 feet |
| Program Version | 8.23.00 |

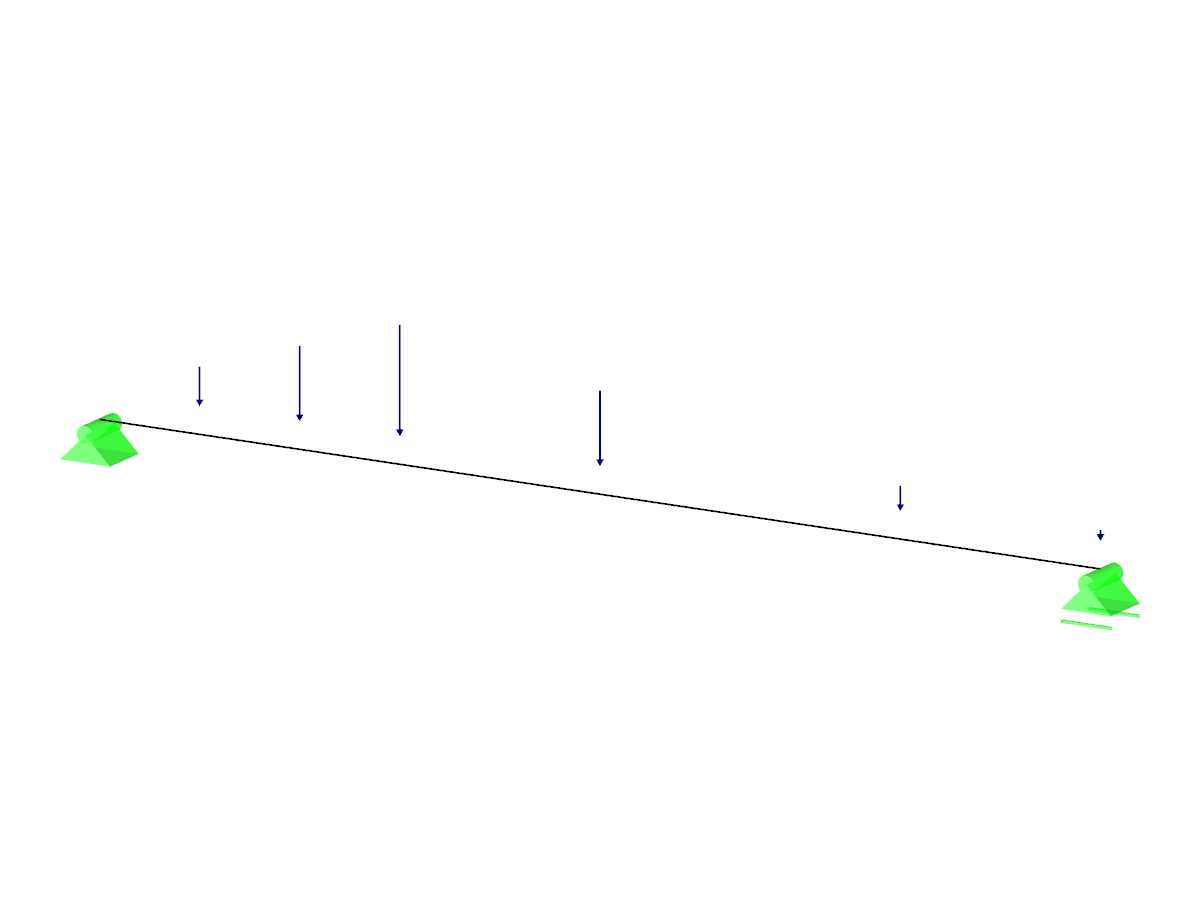

Related Models
