This model of a cone was specially designed for RFEM 5 and presents the structure of a three-dimensional cone element. The entire modeling process is clearly presented in the tutorial “Modeling with RFEM 5 | 010 3D Structures.” It serves as a practical template and supports users in simulating 3D structures. Use this model to explore the functionality and workflows in RFEM 5.
Model Used in

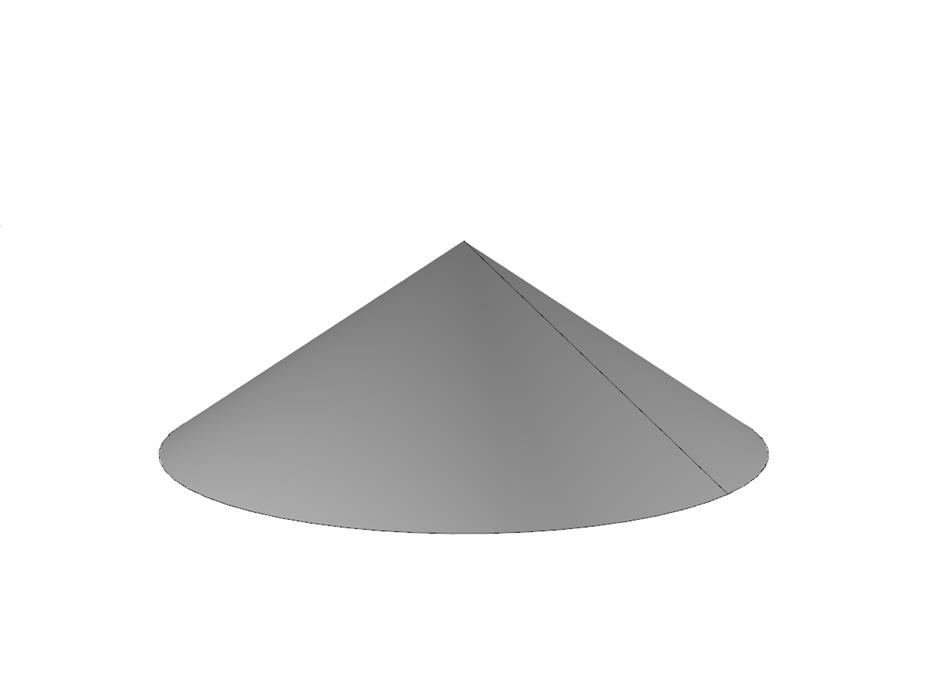

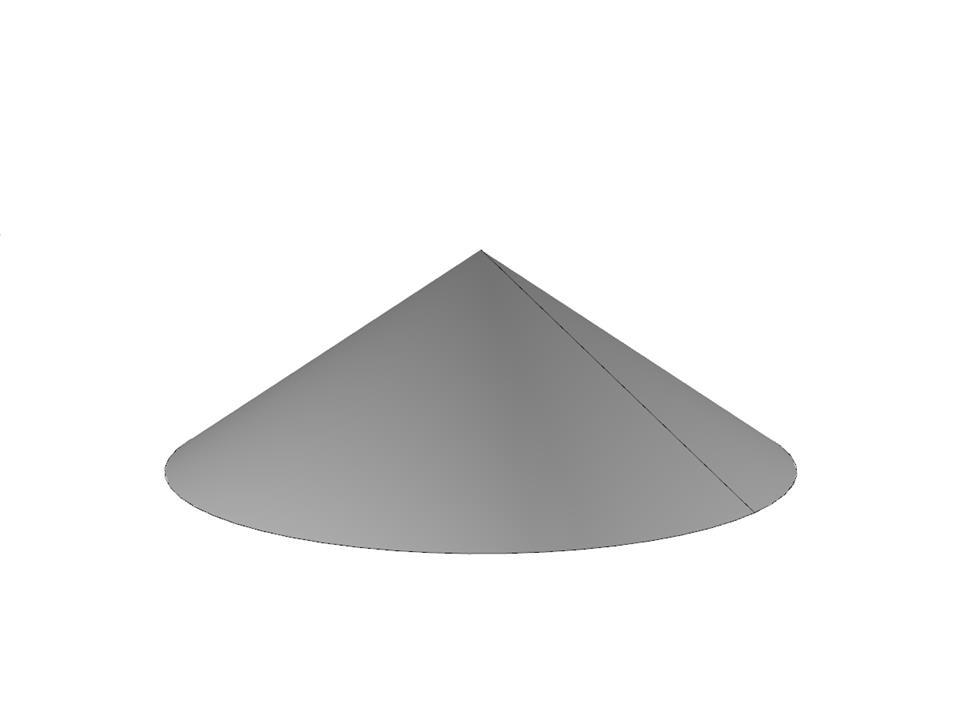

3D Model of Cone for RFEM 5
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Surfaces | 1 |
| Total Weight | 29,722 t |
| Dimensions (Metric) | 15.067 x 15.021 x 8.958 m |
| Dimensions (Imperial) | 49.43 x 49.28 x 29.39 feet |
| Program Version | 5.23.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
