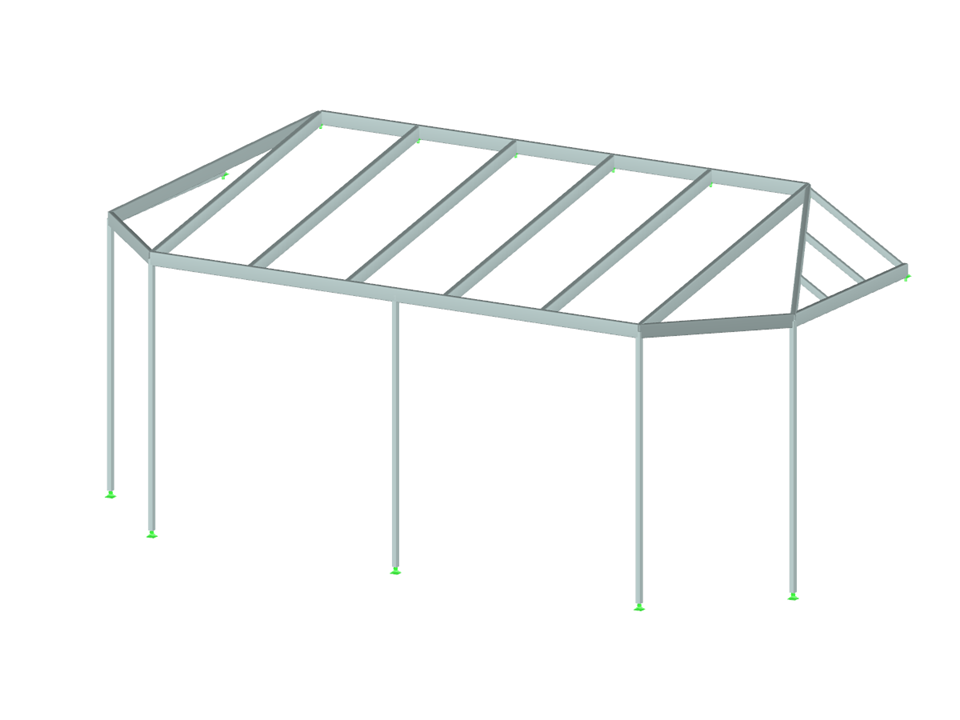

This model shows a modern conservatory based on a robust steel structure. The construction uses cold-formed steel sections and profiles that ensure high strength and efficiency. The steel hall is versatile and optimized for different space uses. The double emphasis on the steel structure highlights the innovative use of materials. The model demonstrates contemporary solutions in steel construction.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Winter Garden

Number of Nodes 30
Number of Lines 42
Number of Members 42
Number of Load Cases 2
Number of Load Combinations 3
Number of Result Combinations 2
Total Weight 0,196 t
Dimensions (Metric) 7.201 x 3.201 x 3.301 m
Dimensions (Imperial) 23.63 x 10.5 x 10.83 feet
Program Version 5.08.02

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
