This model is a roofing solution that impresses with its innovative use of membrane structures in combination with reinforced concrete. The design allows for flexible spans while maintaining a high level of stability. The integration of the membrane creates a lightweight and aesthetically attractive roof solution. The model is suitable for both temporary and permanent roof structures. The solution presented combines modern material technology with traditional structural design.

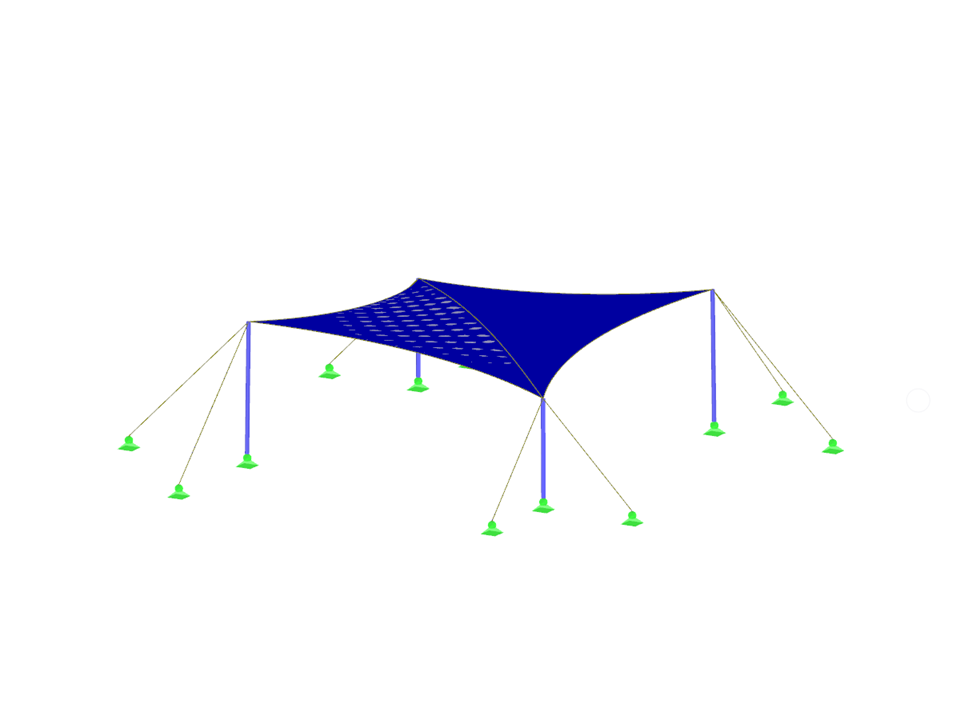

Roofing with Membrane Structure and Reinforced Concrete
| Number of Nodes | 17 |
| Number of Lines | 17 |
| Number of Members | 17 |
| Number of Surfaces | 2 |
| Number of Load Cases | 2 |
| Total Weight | 0,359 t |
| Dimensions (Metric) | 18.500 x 18.500 x 4.250 m |
| Dimensions (Imperial) | 60.7 x 60.7 x 13.94 feet |
| Program Version | 5.24.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
